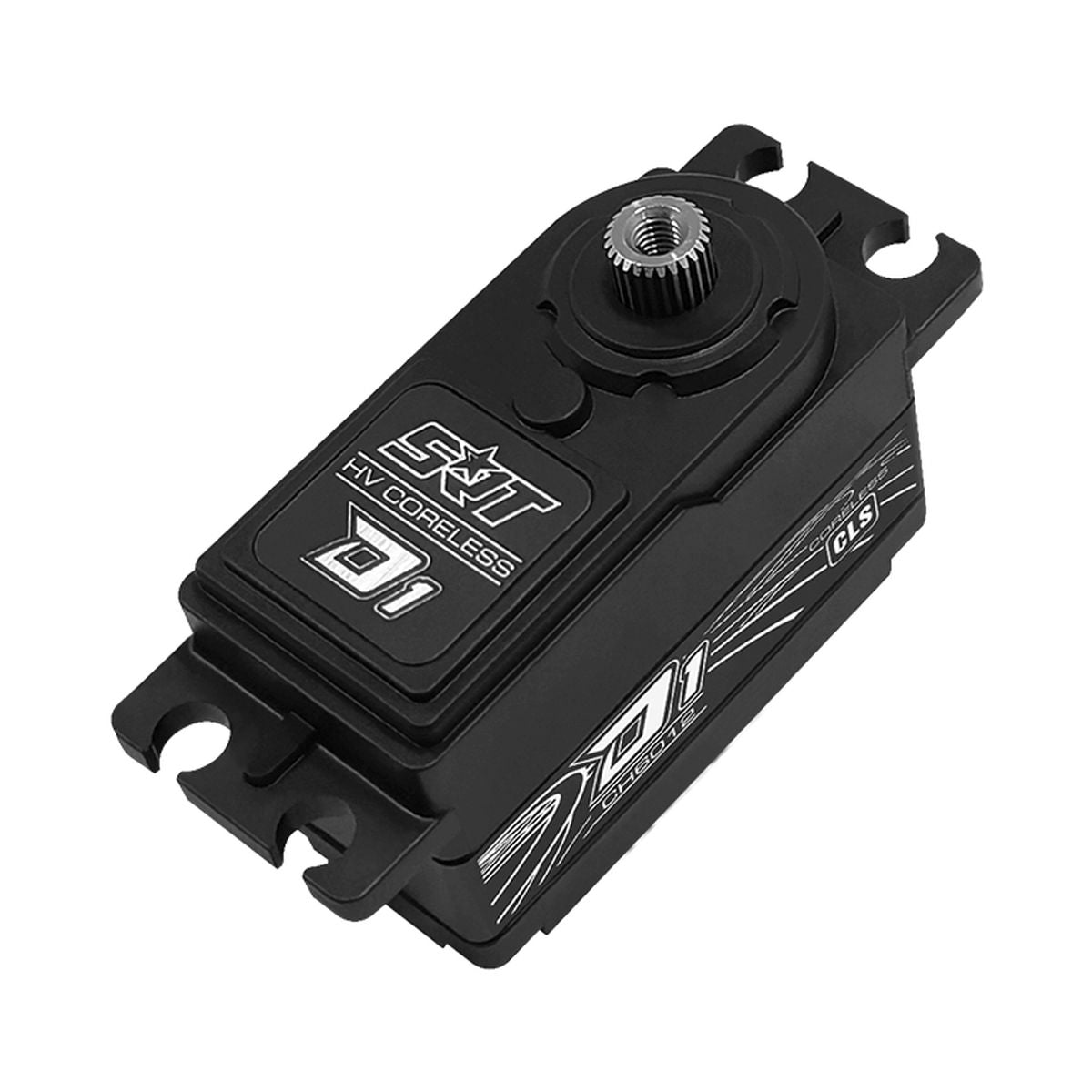

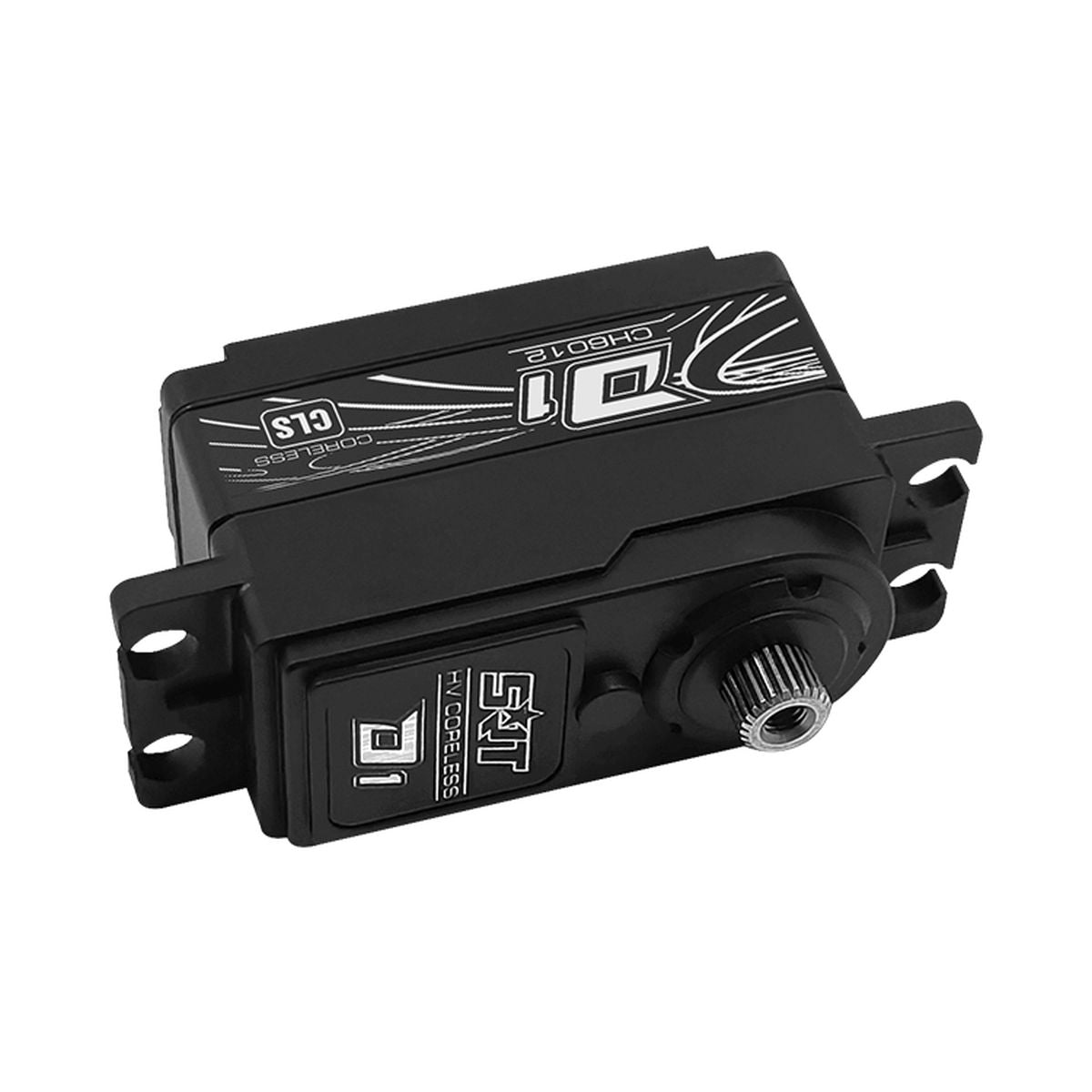

SRT SRTCH6012 CH6012 Low Profile HV Coreless Digital Servo

The SRT CH6012 low-profile HV coreless digital servo delivers a rated speed of 0.06 seconds and 166.6 oz-in of torque at 7.4V. Its low-profile design is suited to installations where servo height is limited.

Key Features

• Low-profile servo design
• Coreless motor with digital control
• High-voltage operation with performance rated at 7.4V
• Rated speed: 0.06 seconds at 7.4V
• Rated torque: 166.6 oz-in at 7.4V

Compatibility

• For RC applications designed to accept a low-profile servo. Verify mounting dimensions, output spline, and electrical compatibility before installation.

Specifications

CH6012 Low Profile HV Coreless Digital Servo, .06sec / 166.6oz @ 7.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard sized servo for High-Voltage applications up to 7.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

• Ideal for 1/10 on road and 1/8 off road scale applications
• Incredible efficiency and low power consumption
• 2 usec Dead Band
• 1-Year Limited Warranty

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless

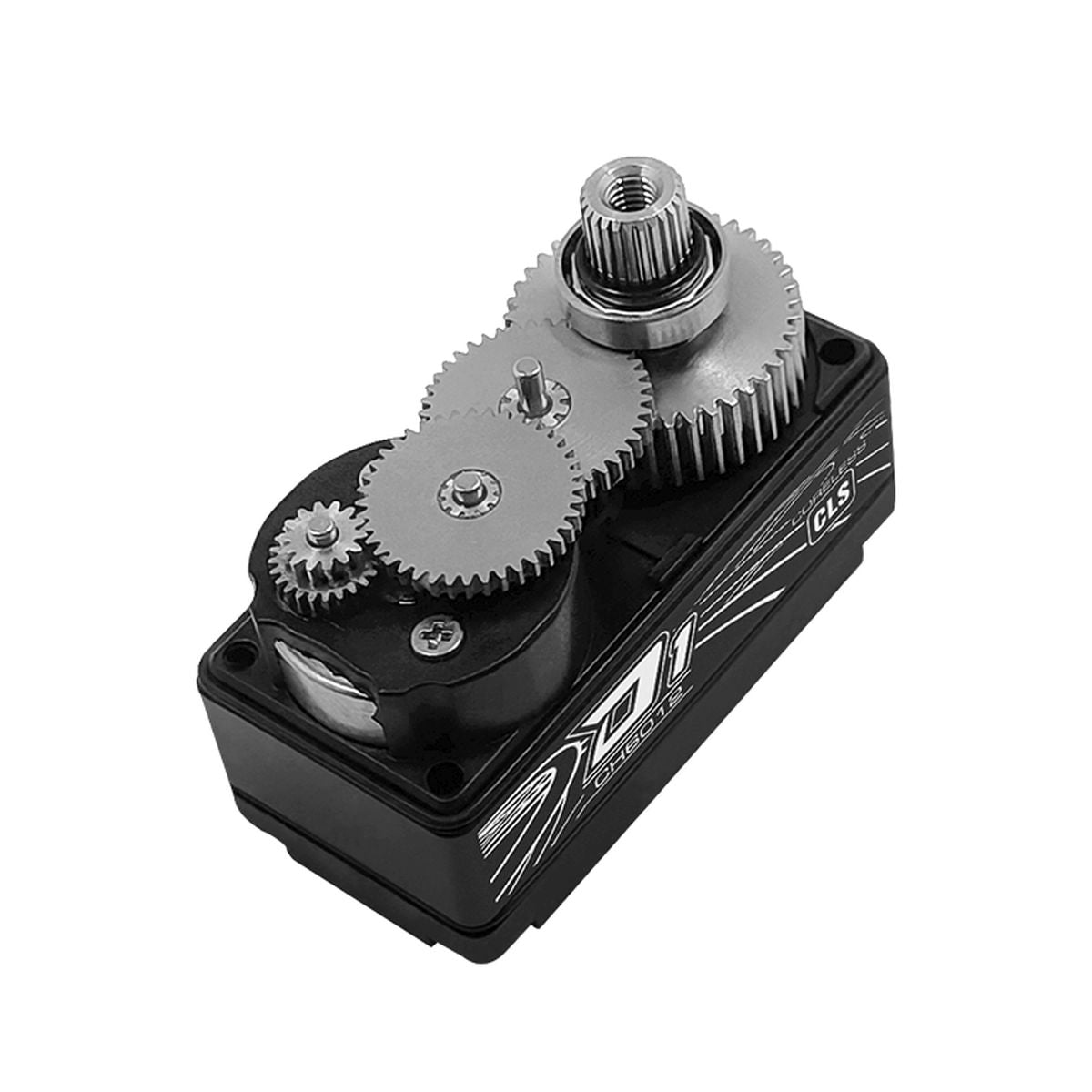

• Gear Type: Metal
• Gear Material: Titanium & Aluminum
• Control System: Pulse width control
• Working Frequency: 1520Is / 330hz
• Operating Voltage: dc6.0-7.4v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (6.0v): 0.07 sec/60 degrees at no load
• Operating Speed (7.4v): 0.06 sec/60 degrees at no load
• Stall Torque (6.0v): 9.0kg.cm (125.0 oz/in)
• Stall Torque (7.4v): 12.0kg.cm (166.6 oz/in)
• Potentiometer Drive: Direct Drive

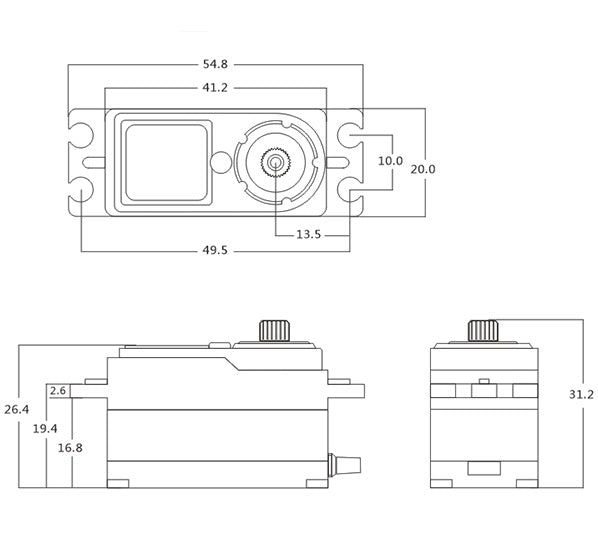

• Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
• Weight: 48.0g (1.69 oz)
• Connector Wire Length: jr 110 mm
