Spektrum SPMXAE1100A Avian 100A Brushless Smart ESC 3-6S Version A
Regular price
$ 99.99
Couldn't load pickup availability
If you Like it SHARE it

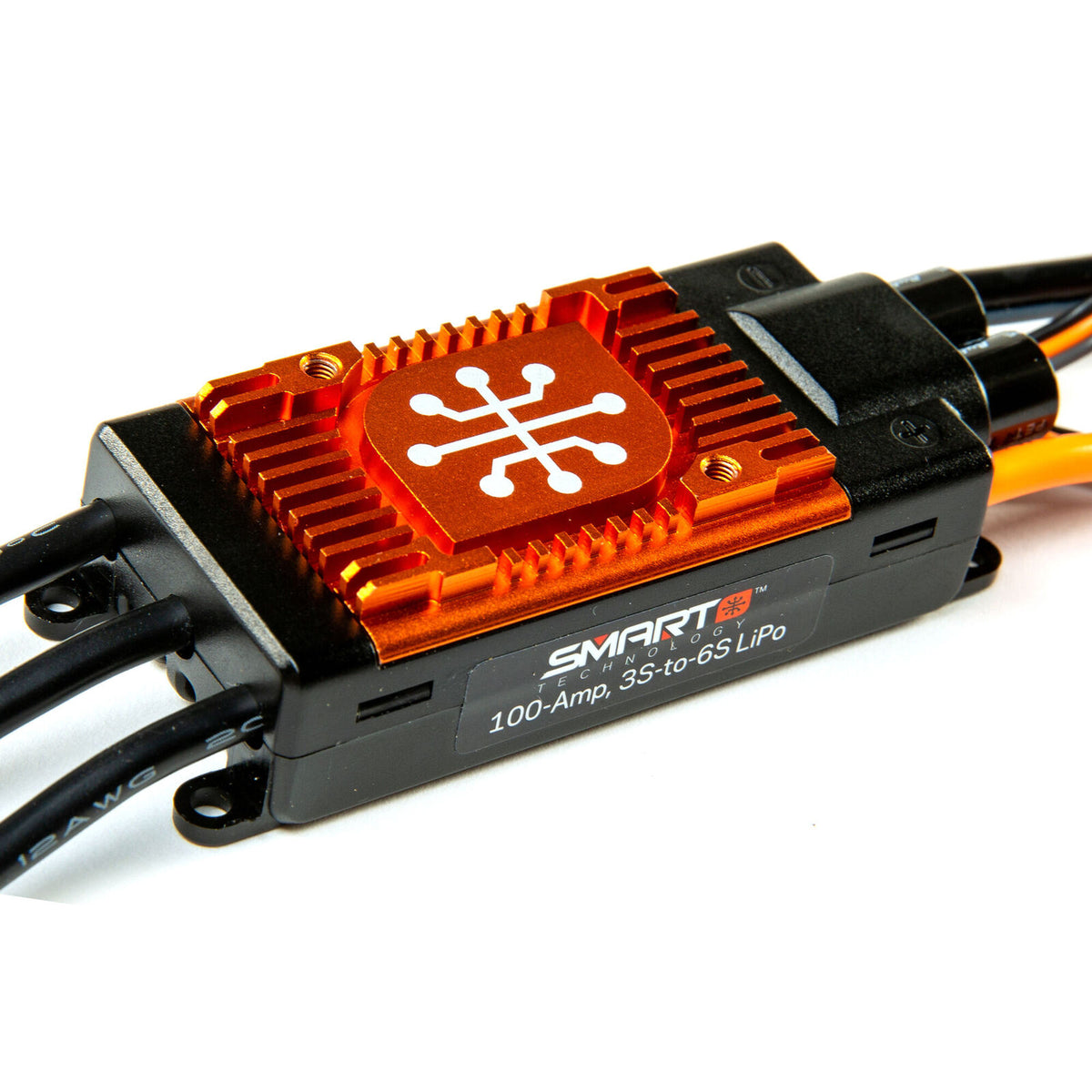

Spektrum SPMXAE1100A Avian 100A Brushless Smart ESC 3-6S Version A provides Smart telemetry, programmable performance, and an adjustable high-power BEC for compatible electric RC aircraft. It arrives ready to install with an IC5 battery connector and 4.0mm motor connectors.
Key Features
- 100A continuous and 120A maximum burst current
- Compatible with 3S to 6S LiPo batteries
- Smart all-in-one telemetry with compatible equipment
- Fast 32-bit ARM M4 processor
- Adjustable 6V, 7.4V, or 8.4V switching BEC
- Over-current, low-voltage, thermal, and failsafe protection
- Throttle-stick, Programming Box, SmartLink, and compatible transmitter programming options

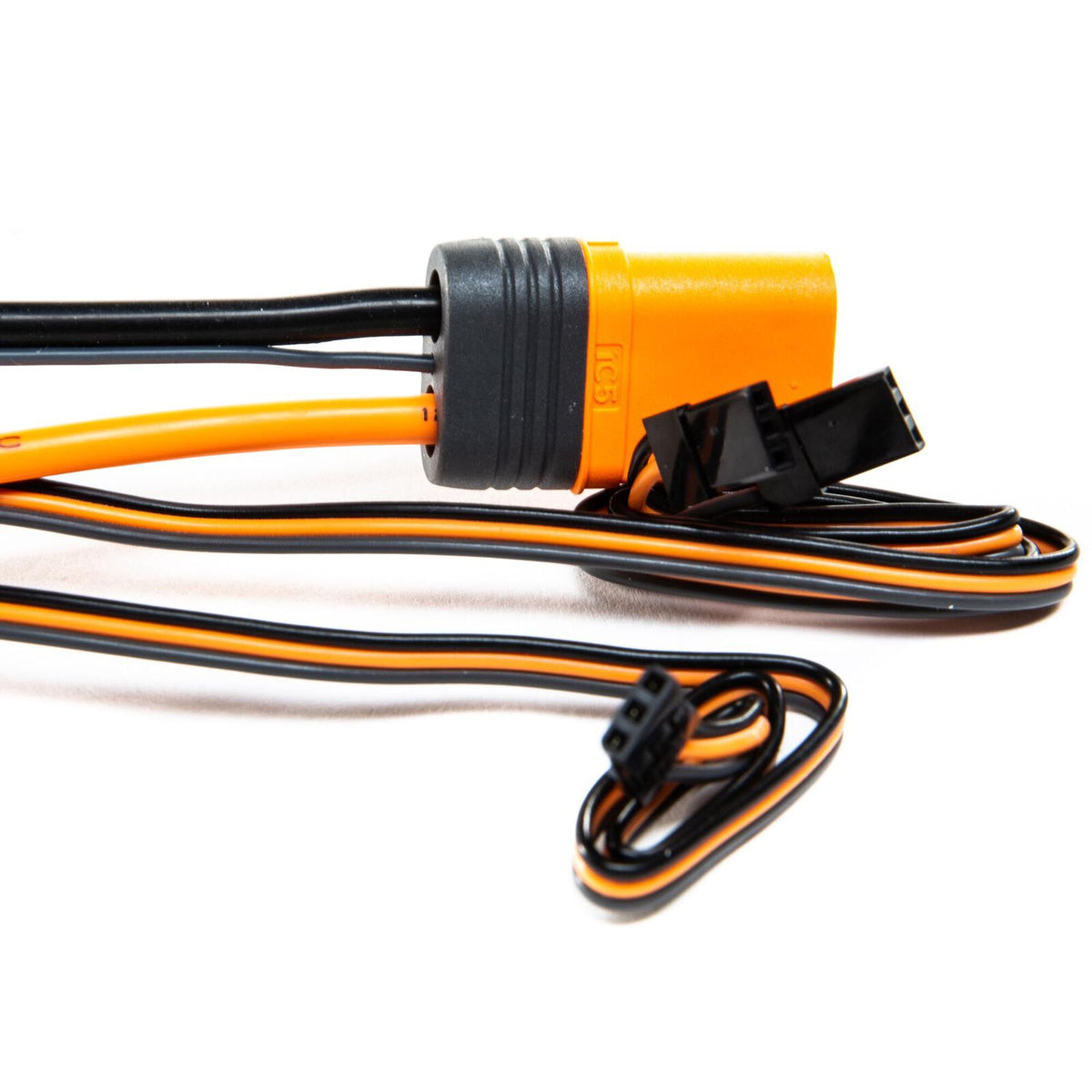

- IC5 connector with EC5 backward compatibility
- Programmable motor reversing with compatible Smart equipment
 |
 |
 |
 |
 |
 |
 |
 |
Compatibility
- Brushless electric RC aircraft using 3S to 6S LiPo power systems
- Spektrum Smart telemetry-compatible transmitters and receivers for advanced telemetry and programming features
- IC5 and EC5 battery connectors
Specifications
| Manufacturer Part Number | SPMXAE1100A |
| Continuous Current | 100A |
| Maximum Burst Current | 120A |
| Input Voltage | 3S-6S LiPo |
| Battery Connector | IC5 |

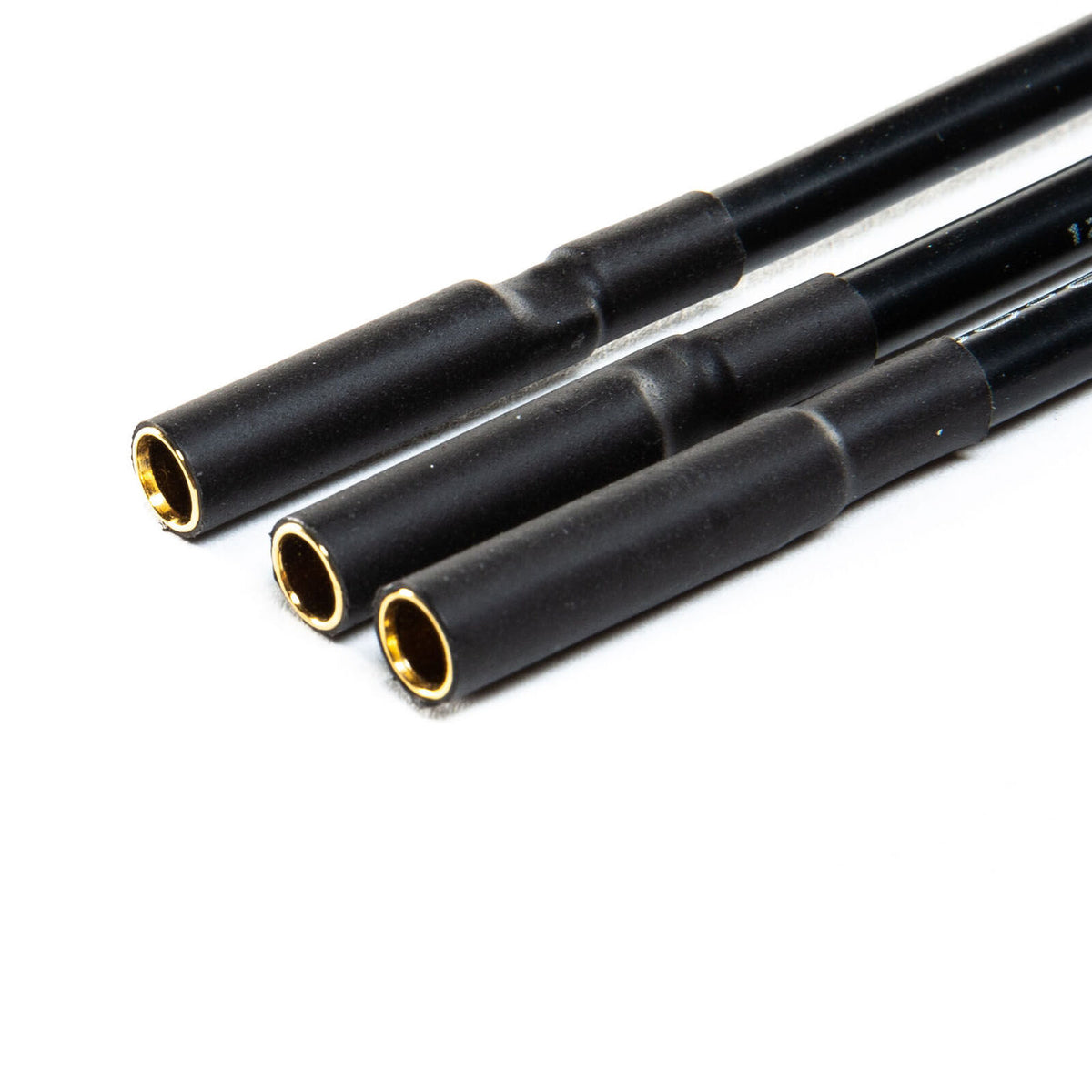

| Motor Connectors | 4.0mm bullet |
| BEC | 8A continuous, 25A burst switching BEC |
| BEC Voltage | 6V, 7.4V, or 8.4V adjustable |
| Dimensions | 3 x 1.4 x 1.3 in (76 x 36 x 33 mm) |
| Weight | 4.4 oz (126 g) |
| Version | A |
| Country of Origin | China |
