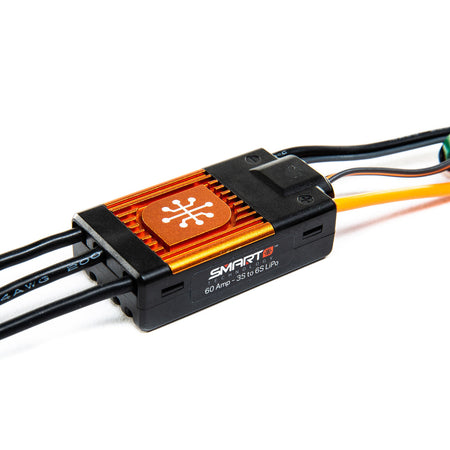

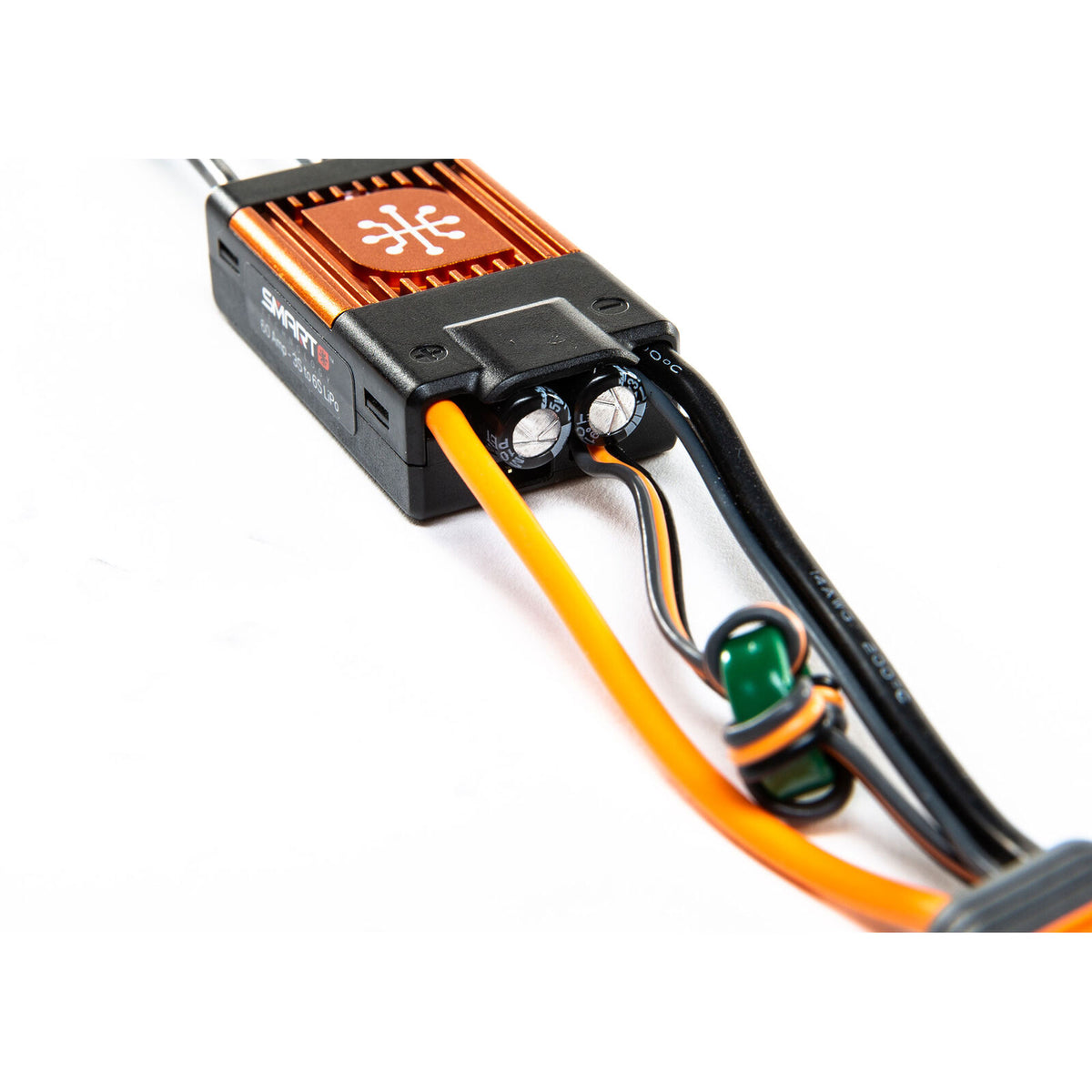

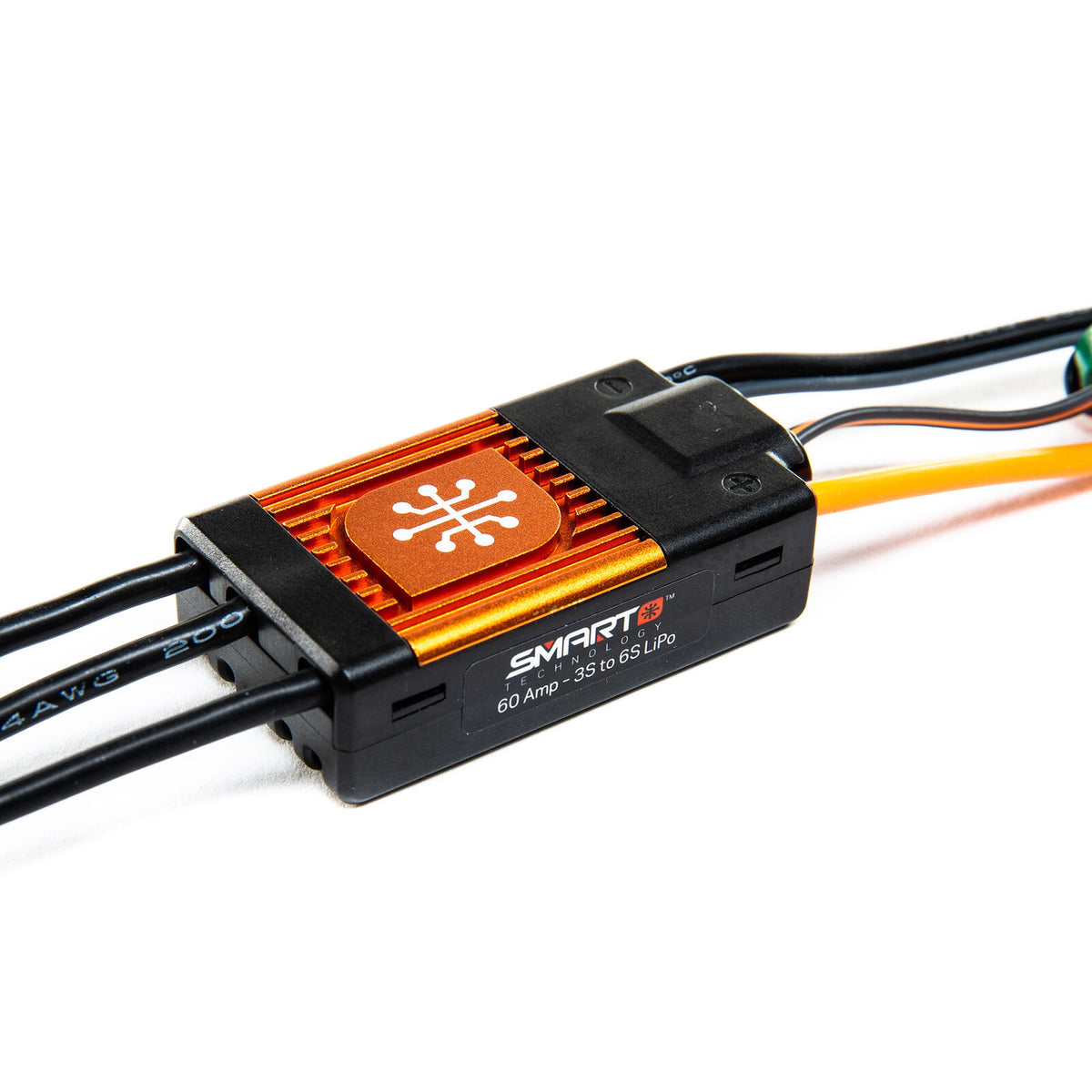

Spektrum SPMXAE1060C Avian 60A Brushless Smart ESC 3S-6S IC5
Regular price
$ 79.99
Couldn't load pickup availability
If you Like it SHARE it
Spektrum SPMXAE1060C Avian 60A Brushless Smart ESC 3S-6S IC5 provides Smart telemetry and programmable brushless motor control for compatible electric RC aircraft. Its compact design supports 3S through 6S LiPo power systems and includes an IC5 battery connector.
Key Features
- 60A continuous and 80A maximum burst current
- Compatible with 3S to 6S LiPo batteries
- Spektrum Smart telemetry technology
- Adjustable motor timing and programmable low-voltage cutoff
- Switching BEC with 6V or 7.2V adjustable output
- Programmable braking and motor reversing
- IC5 battery connector
- Compact design for aircraft installations
 |
Compatibility
- Brushless electric RC aircraft using 3S to 6S LiPo power systems
- Compatible Spektrum Smart telemetry equipment
- IC5 and backward-compatible EC5 battery connections
Specifications
| Manufacturer Part Number | SPMXAE1060C |
| Continuous Current | 60A |
| Maximum Burst Current | 80A |
| Input Voltage | 3S-6S LiPo |
| Battery Connector | IC5 |
| Battery Input Lead | 3.9 in (100 mm), 14AWG |
| Motor Output Lead | 3.9 in (100 mm), 14AWG |
| BEC | 7A continuous, 20A burst switching BEC |
| BEC Voltage | 6V or 7.2V adjustable |
| Dimensions | 2.3 x 1.2 x 0.6 in (58 x 30 x 15 mm) |
| Weight | 2.0 oz (56 g) |
| Country of Origin | China |
