Spektrum SPMR8210A NX8+ 20-Channel DSMX Transmitter Only
Regular price
$ 399.99
Couldn't load pickup availability
If you Like it SHARE it
Spektrum SPMR8210A NX8+ 20-Channel DSMX Transmitter Only provides programming for airplanes, helicopters, sailplanes and multirotors, with a 3.2-inch color display, Smart telemetry support and Wi-Fi connectivity. The included 3.7V 2200mAh 1S Li-ion transmitter battery charges through USB-C. A receiver is sold separately.
Key Features
- 20-channel DSMX 2.4GHz aircraft transmitter
- Airplane, sailplane, multirotor and helicopter programming
- 250-model memory and BNF aircraft model templates
- 24 programmable mixes, 8 sequencers and up to 10 flight modes
- Smart Transmitter File technology support with compatible receivers and select E-flite BNF aircraft
- Smart telemetry support with compatible batteries, ESCs and receivers

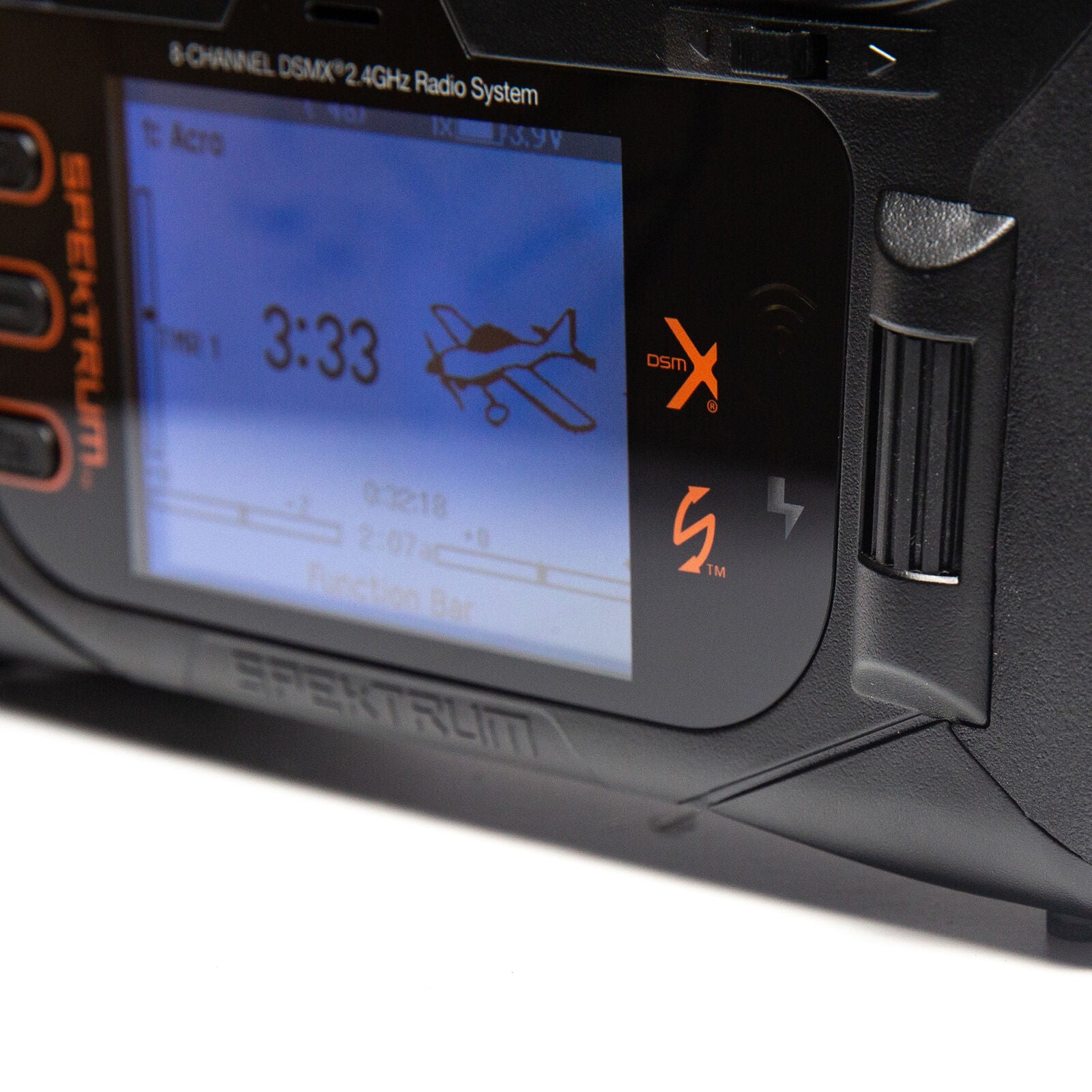

- 3.2-inch backlit color display with 320 x 240 resolution and customizable palettes
- Roller-wheel navigation with Clear, Back and Function buttons
- Logic switches, custom sounds and programmable voice alerts
- Telemetry Ticker Tape and customizable My List menu shortcuts
- Wi-Fi registration and firmware updates
- USB-C charging and computer connection for compatible simulators, including RealFlight
- Wireless trainer link with compatible Spektrum transmitters and ModelMatch re-linking

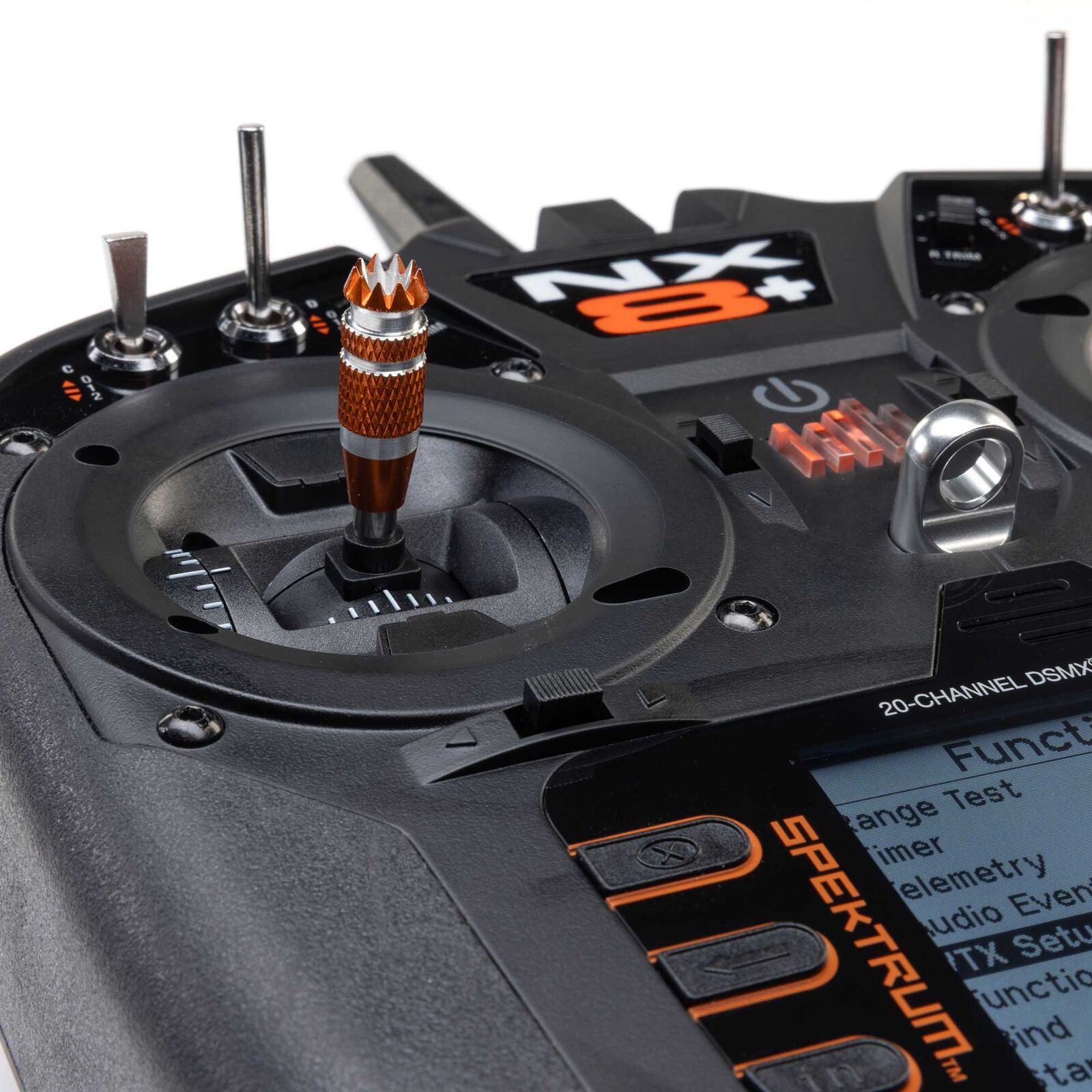

- Quad-bearing potentiometer gimbals and user-selectable Modes 1-4
- Headphone jack for voice alerts

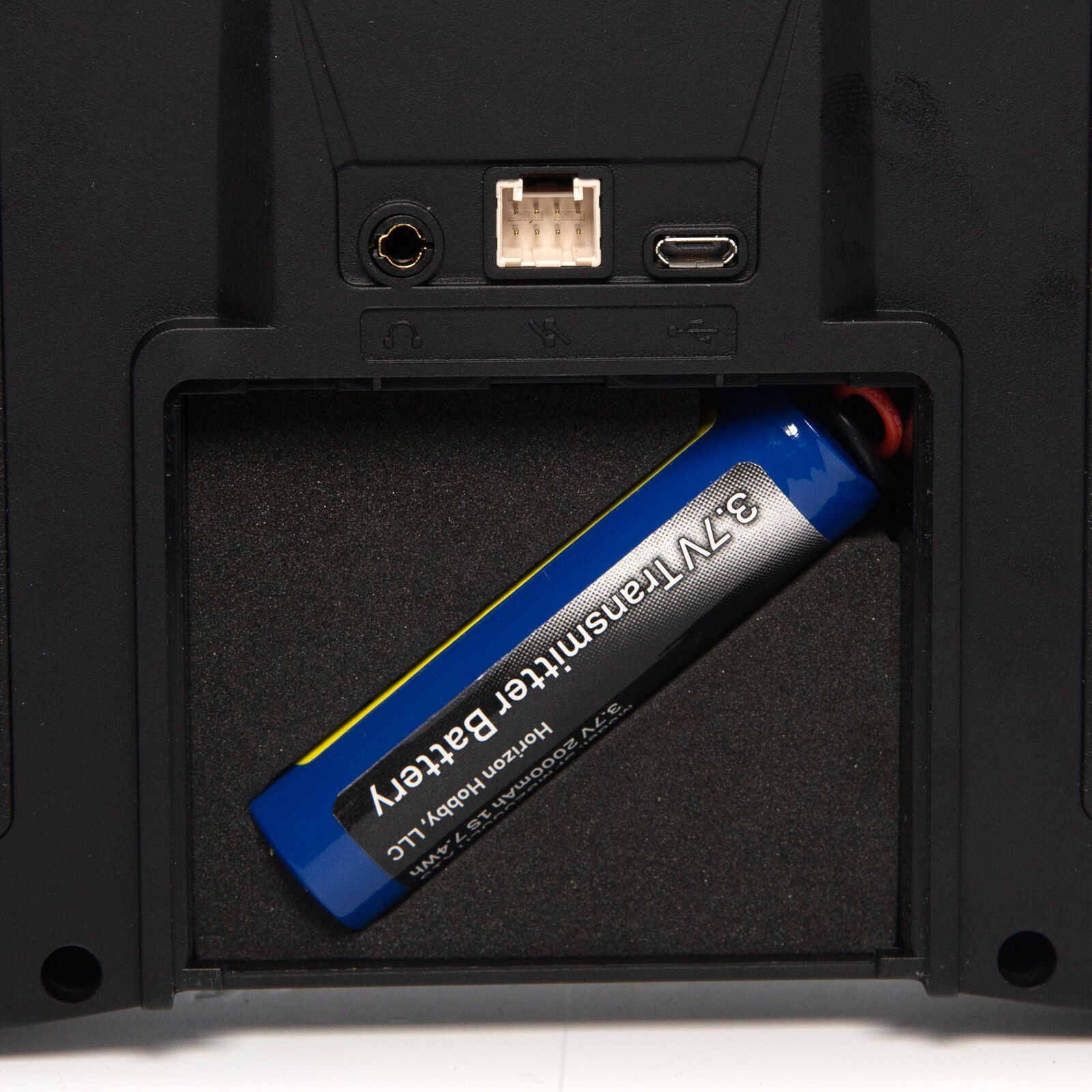

- Included 3.7V 2200mAh 1S Li-ion transmitter battery and USB cable

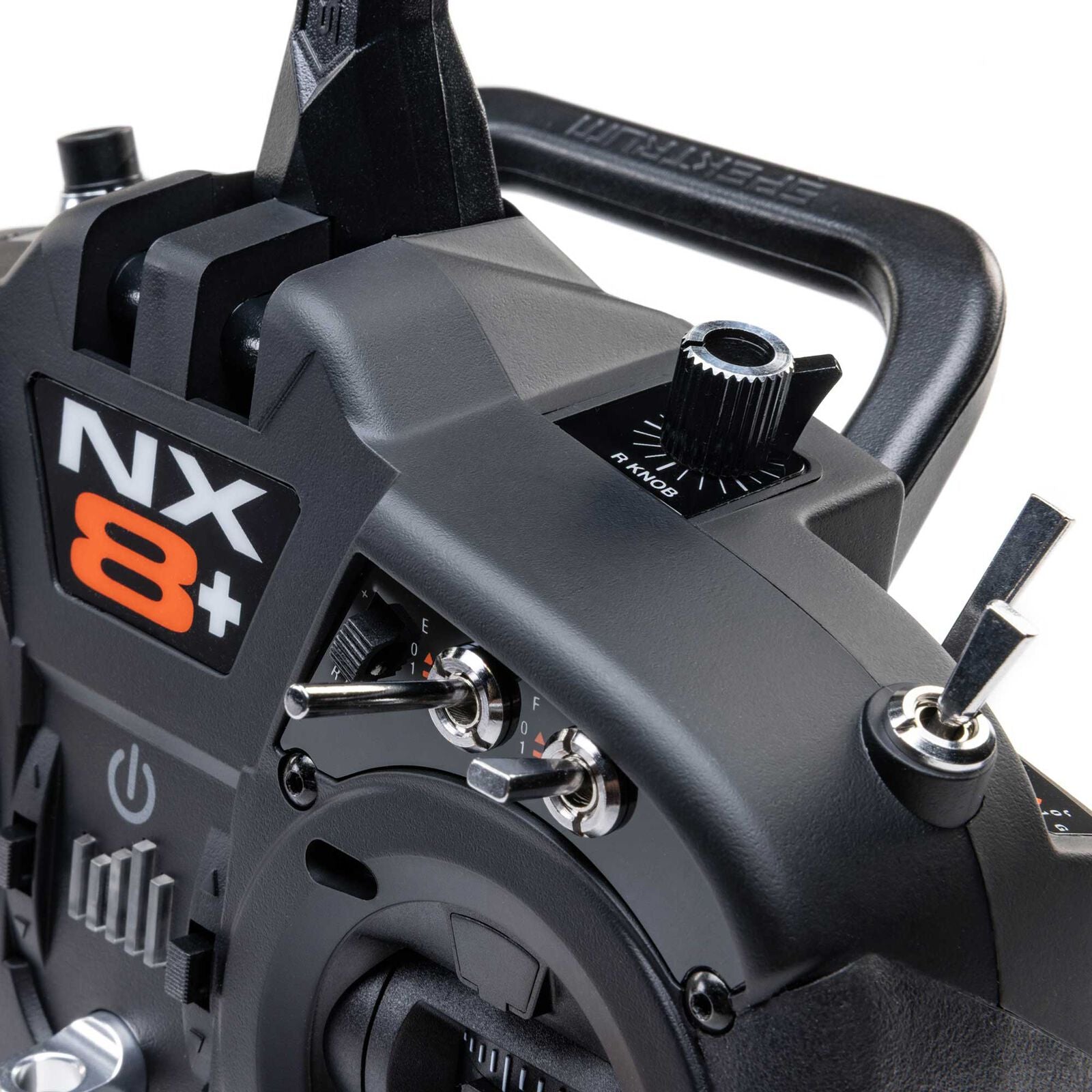

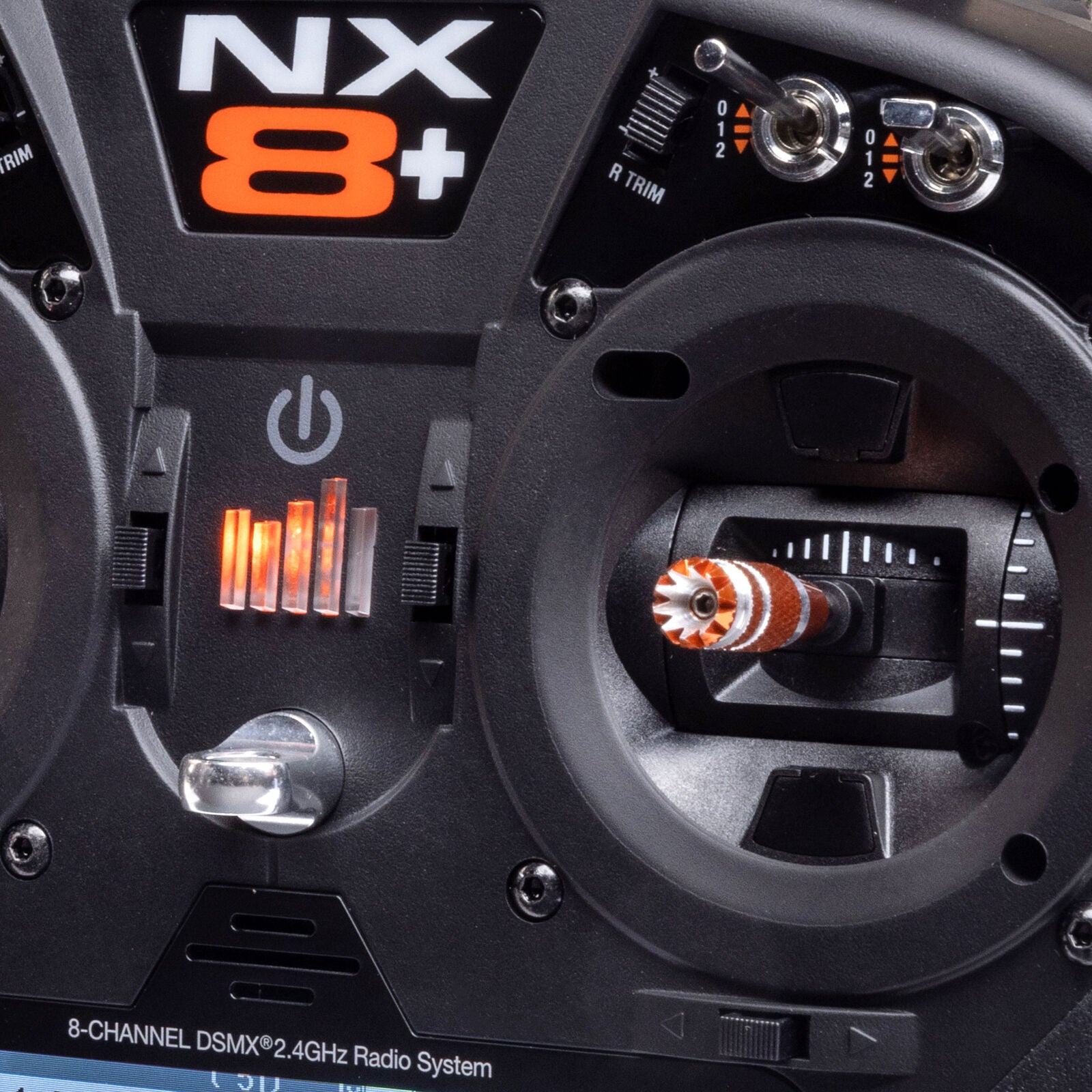

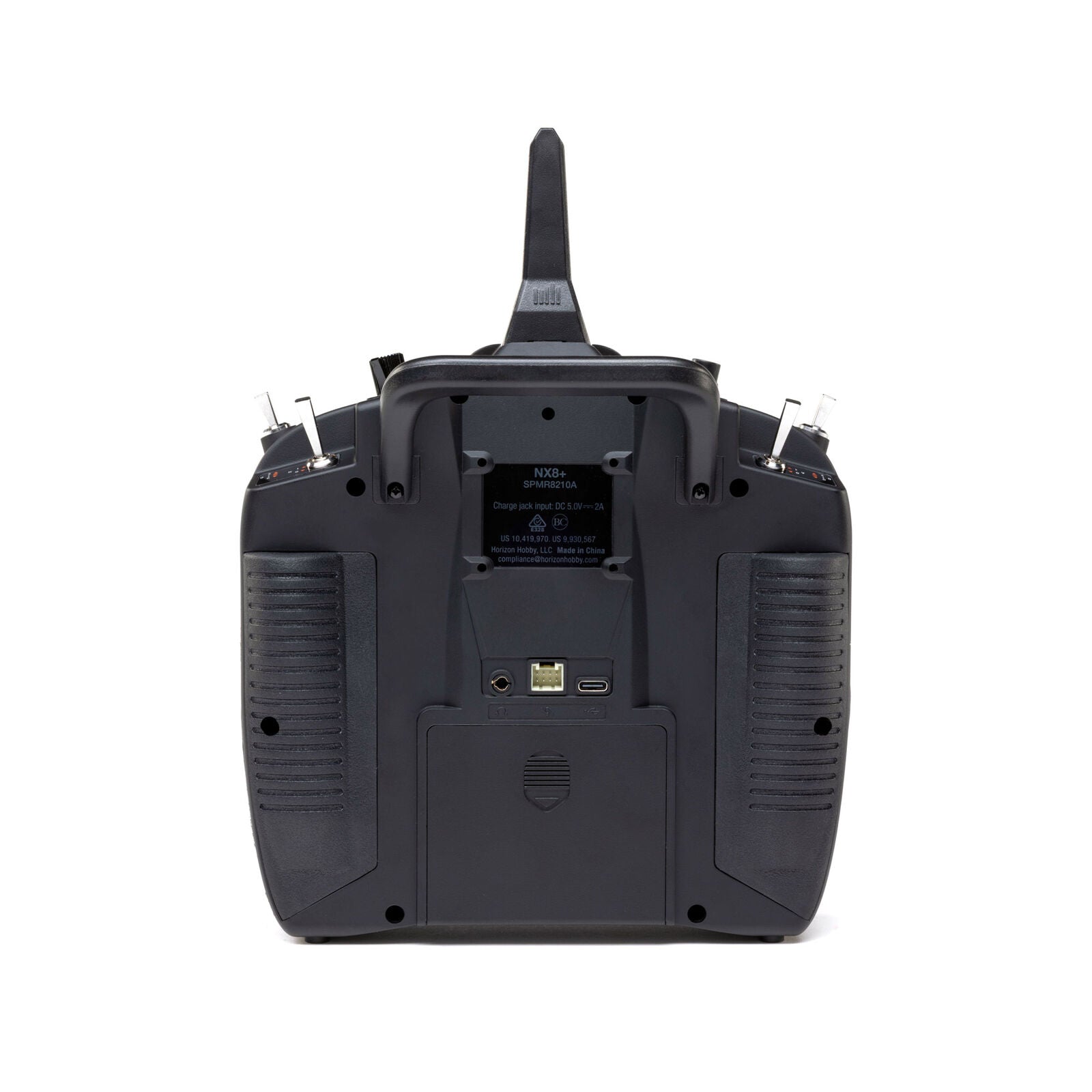

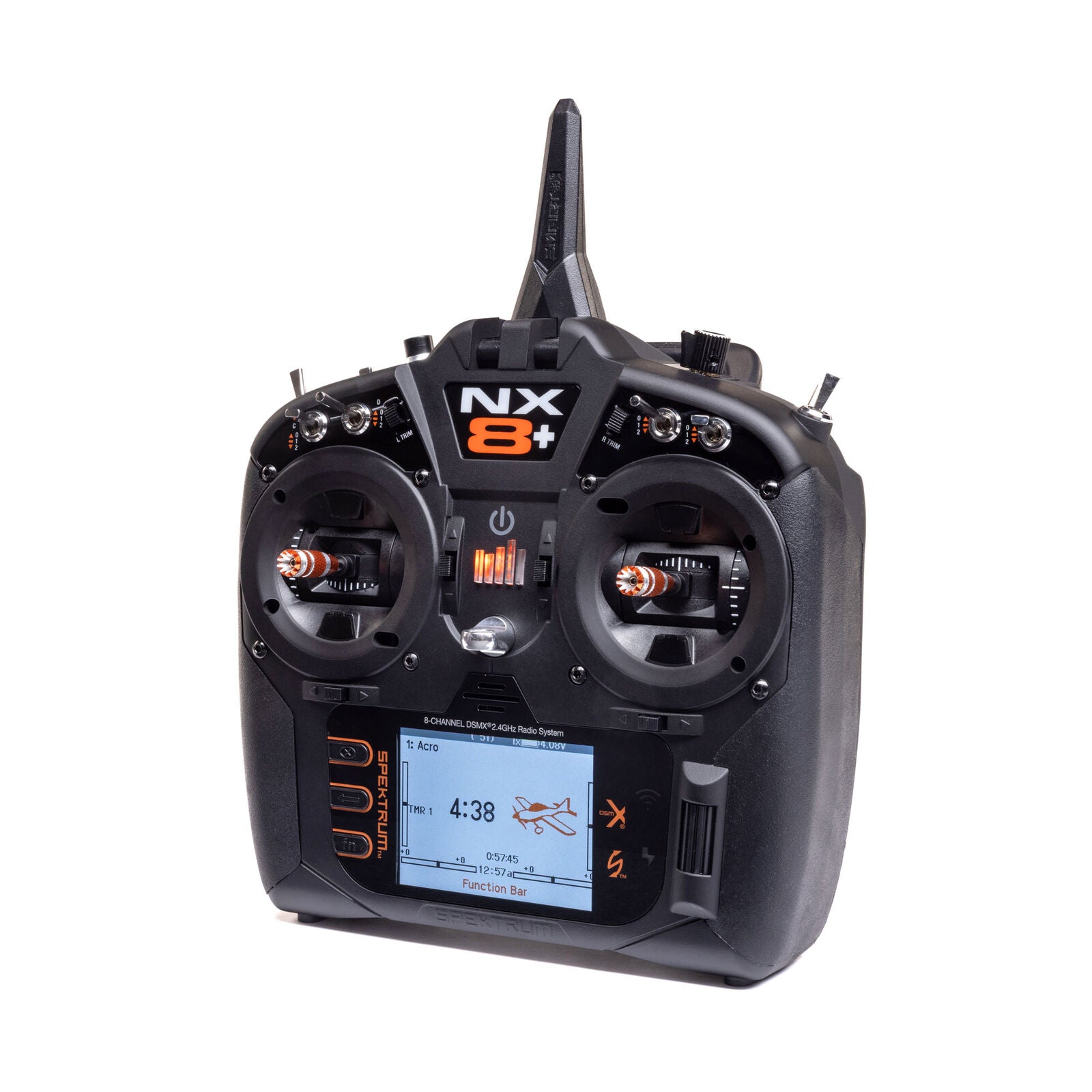

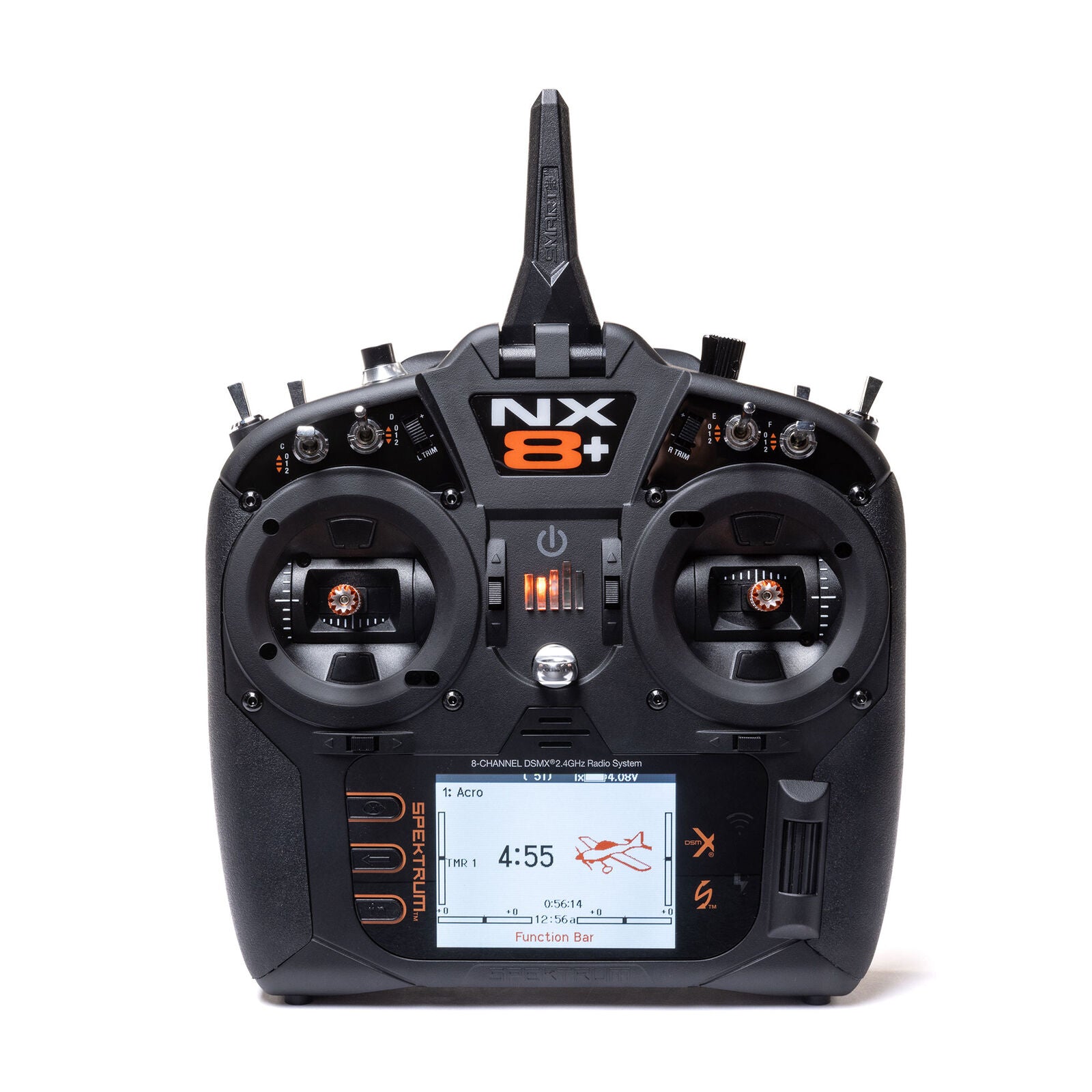

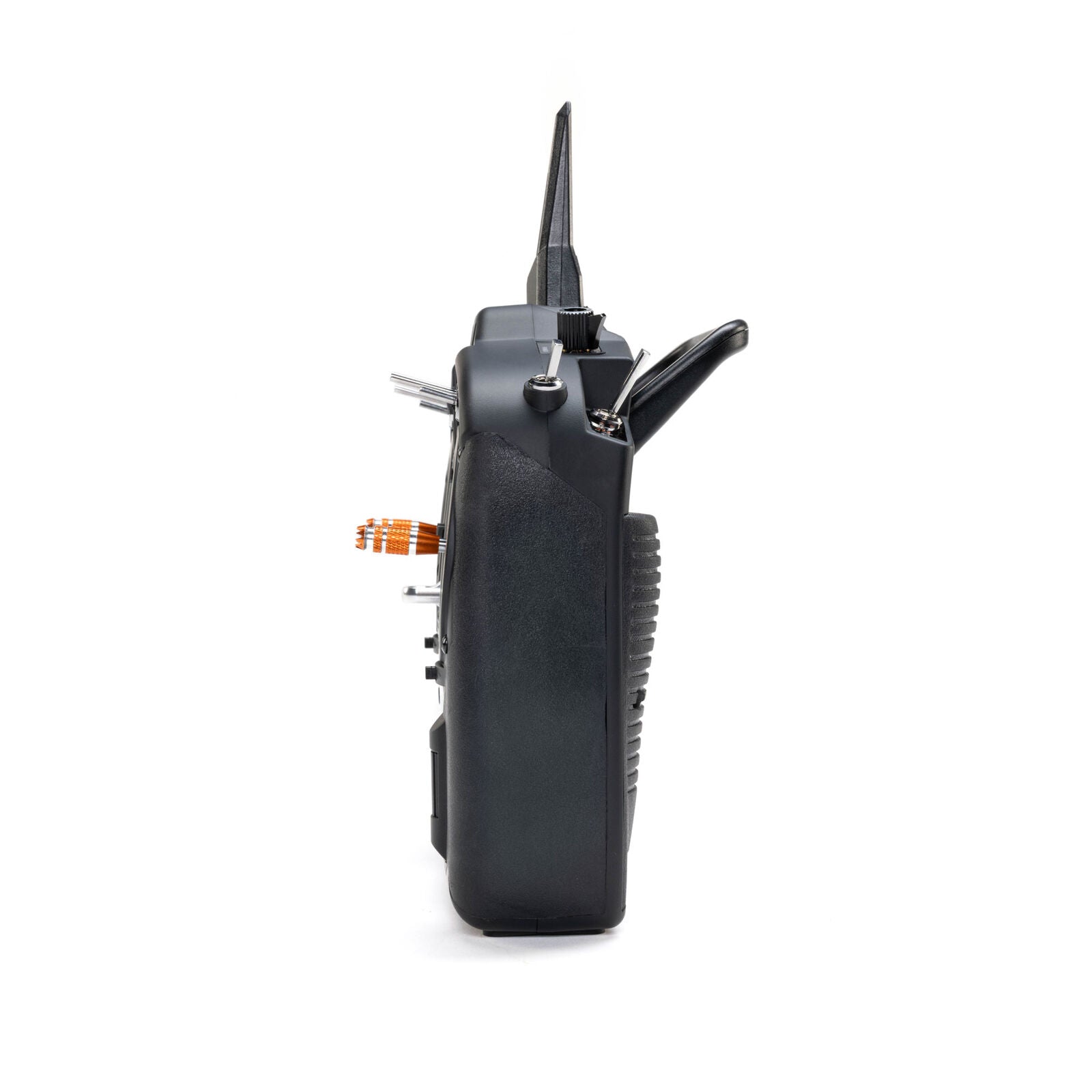

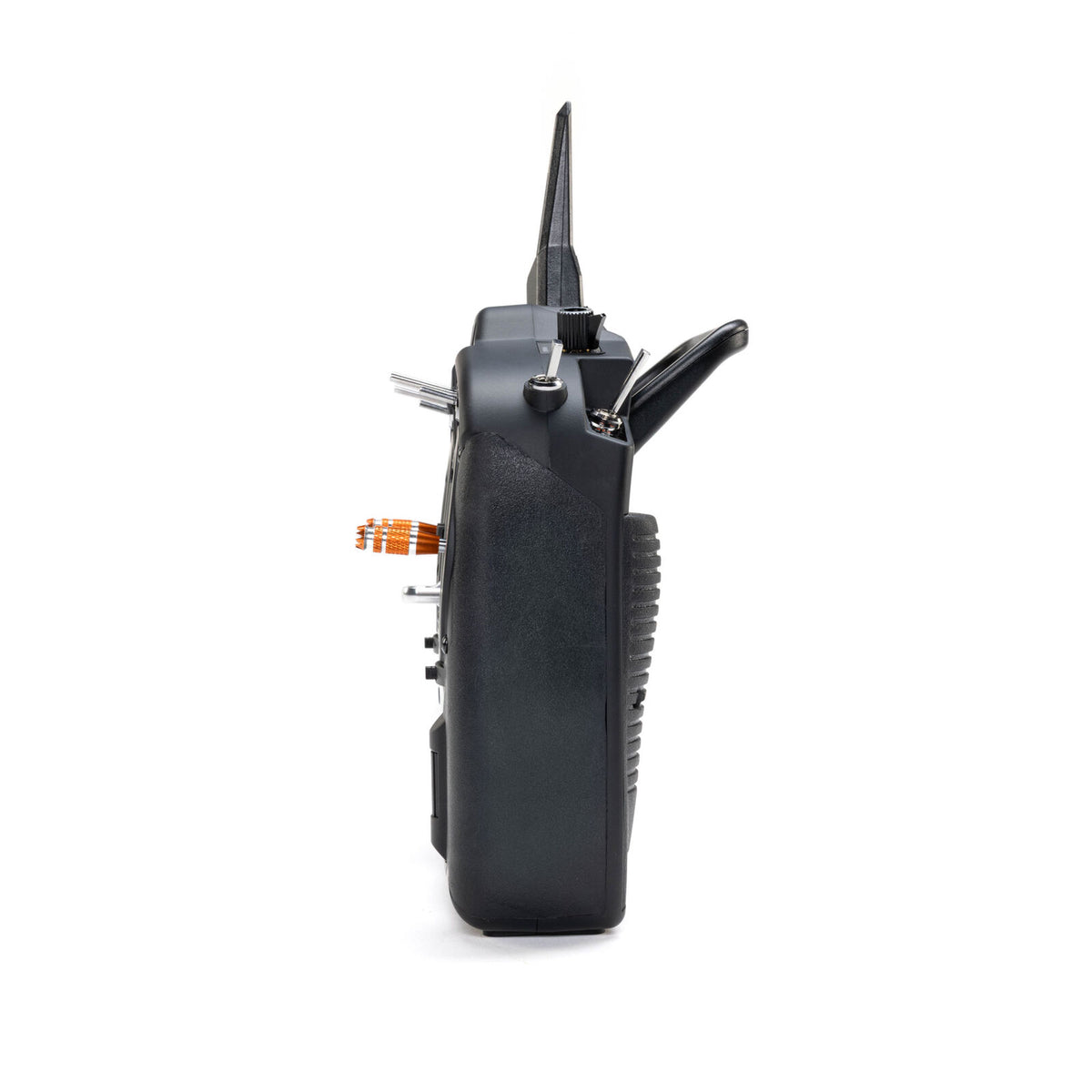

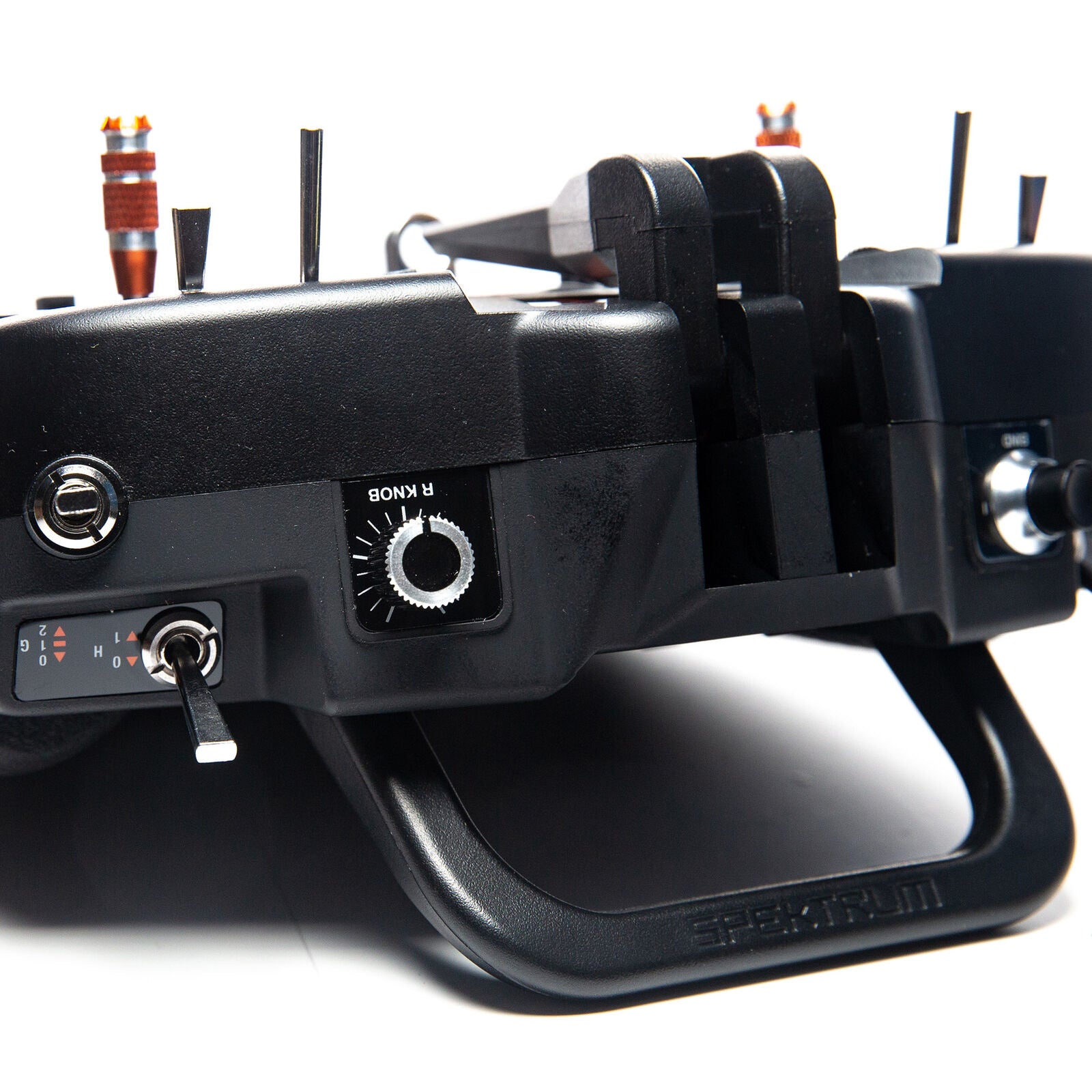

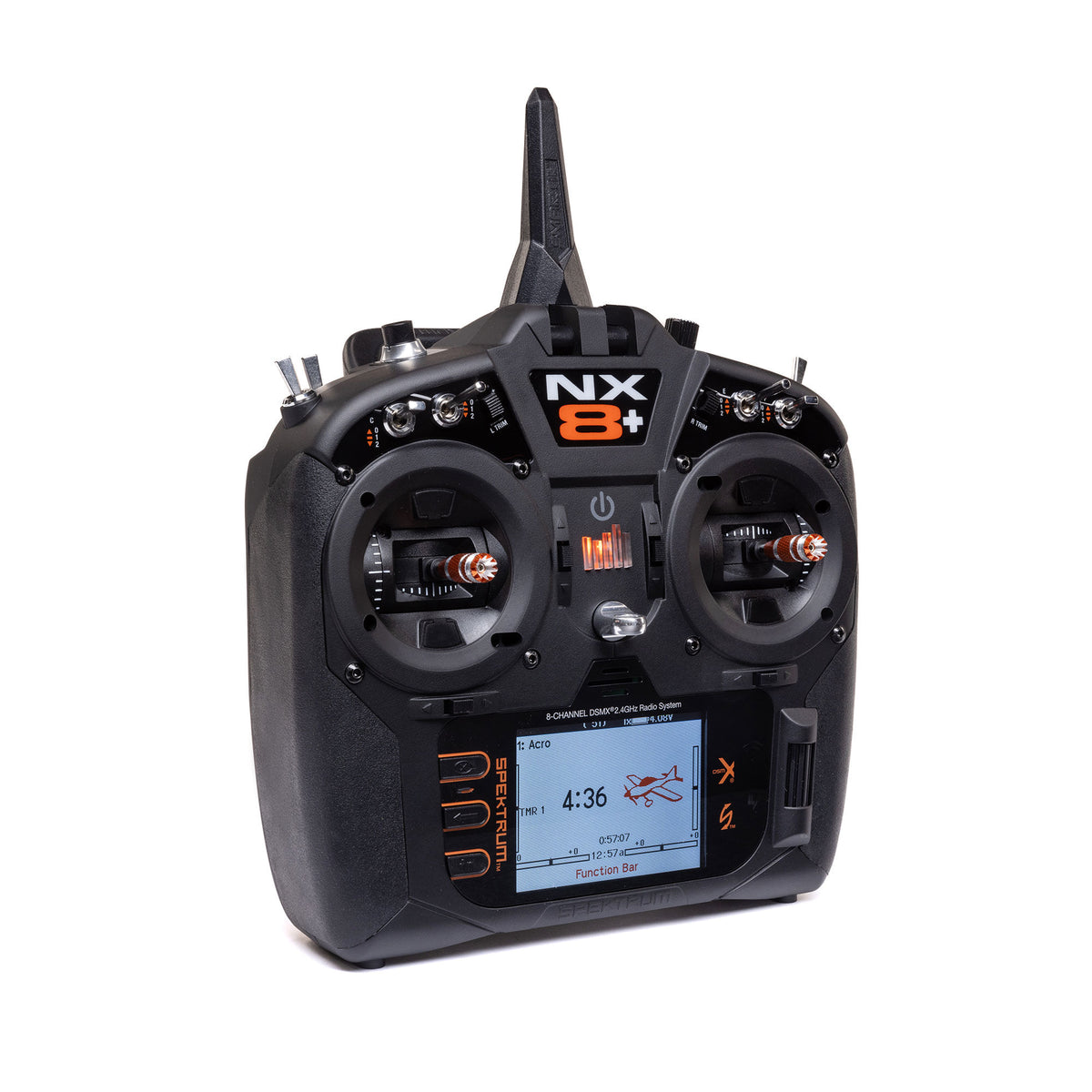

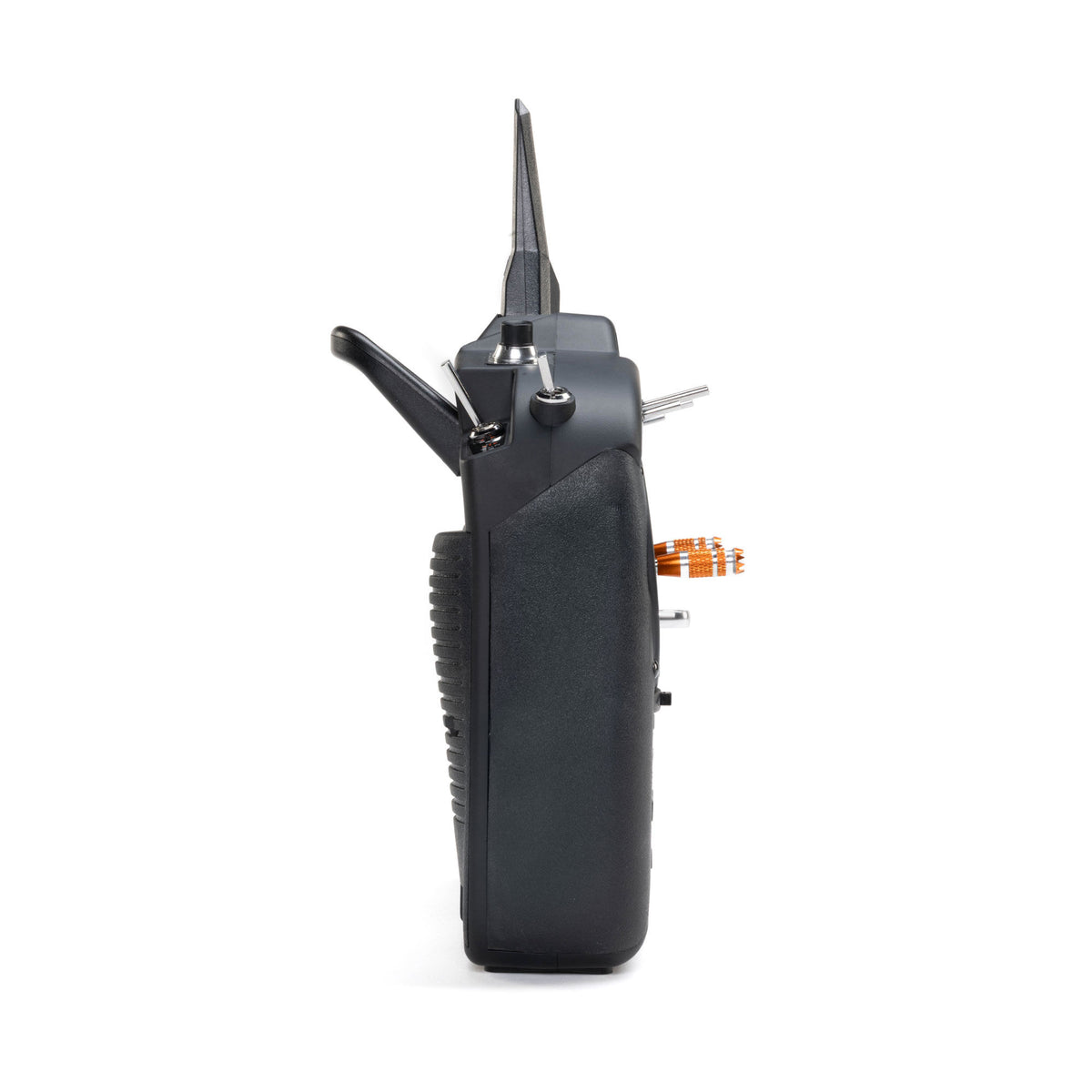

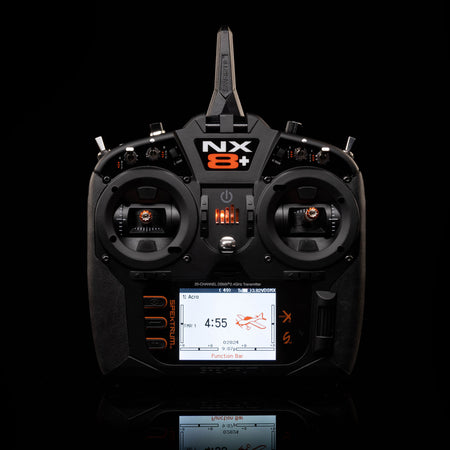

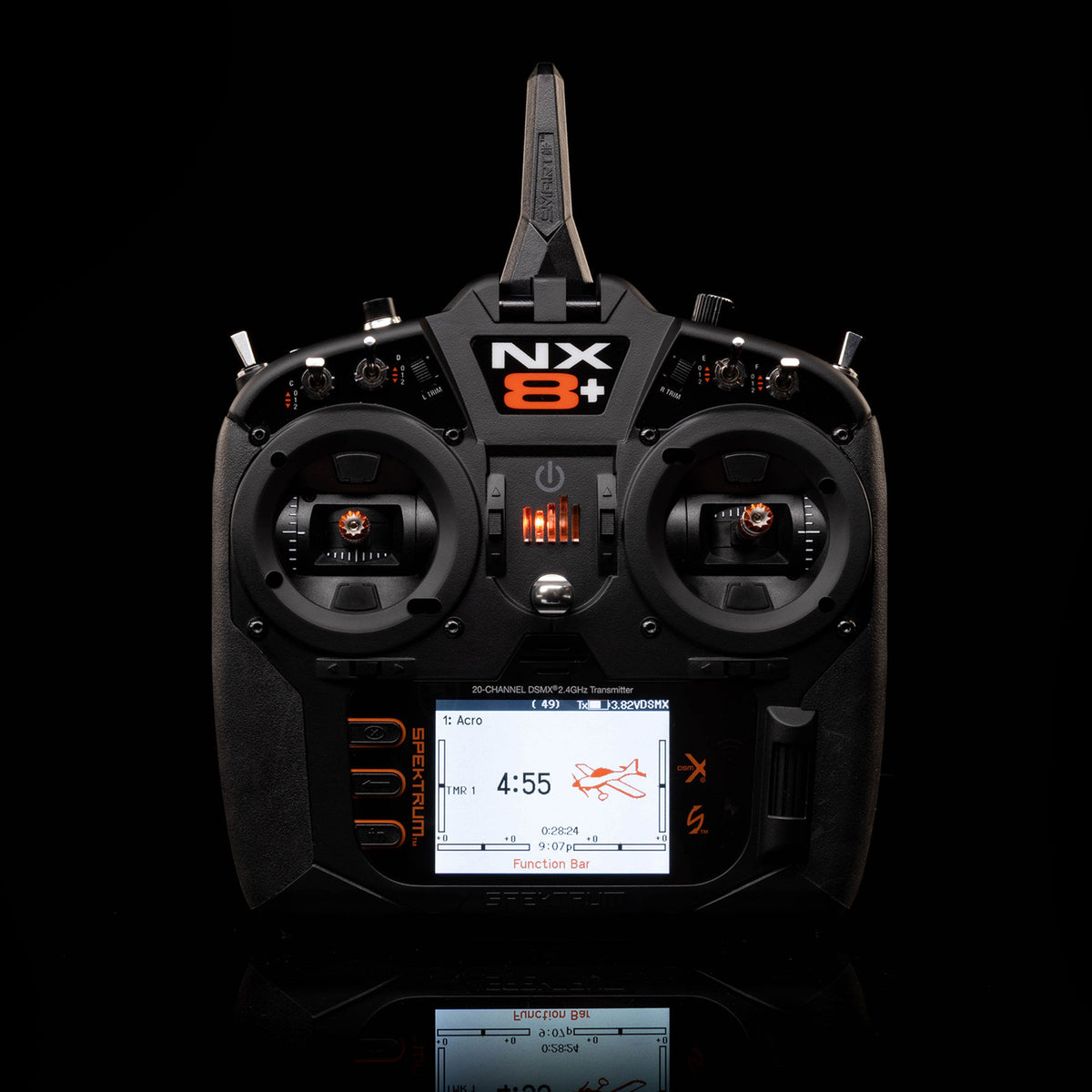

Product and Feature Images
 |
 |
 |
 |
 | |
 |
 |
 |
 |
 |
 |
Compatibility
- Compatible DSMX aircraft receivers; receiver sold separately
- Airplane, helicopter, sailplane and multirotor applications
- Smart telemetry and Smart Transmitter File functions require compatible model electronics
- Wireless trainer support with compatible Spektrum DSMX/DSM2 transmitters
- USB simulator operation with compatible PC or laptop software; simulator sold separately
- Source feature copy lists third-party module support requiring an external power source, while its specification table lists no serial port. Confirm module and port compatibility before purchasing accessories.
Specifications
| Manufacturer Part Number | SPMR8210A |
| Model | NX8+ |
| Completion Level | Transmitter only; receiver sold separately |
| Channels | 20 |
| Band / Modulation | 2.4GHz / DSMX |
| Application | Airplane, helicopter, sailplane, multirotor |
| Range | Full |
| Resolution | 2048 |
| Frame Rates | 22ms, 11ms |
| Model Memory | 250 |
| Gimbals | Quad-bearing potentiometer |
| Modes | User-selectable Modes 1-4 |
| Operating System | Spektrum AirWare |
| Programming | 24 programmable mixes, 8 sequencers, up to 10 flight modes |
| Display | 3.2-inch backlit color, 320 x 240; not touchscreen |
| Input Voltage | 3.7V |
| Included Transmitter Battery | 3.7V 1S 2200mAh Li-ion |
| Charging | USB-C; USB cable included |
| Connectivity | Wi-Fi, USB, data port |
| Telemetry | Supported |
| Audio | Alarms, tones, preconfigured callouts and voice alerts |
| Technology | Voice Alerts, Smart Transmitter File |
| Failsafe | Supported |
| Flight Log Compatibility | Yes |
| SD Card / AirWare Capability | Yes |
| Rate Positions | 3 positions |
| Left / Right Hand Operation | No, as listed in source specifications |
