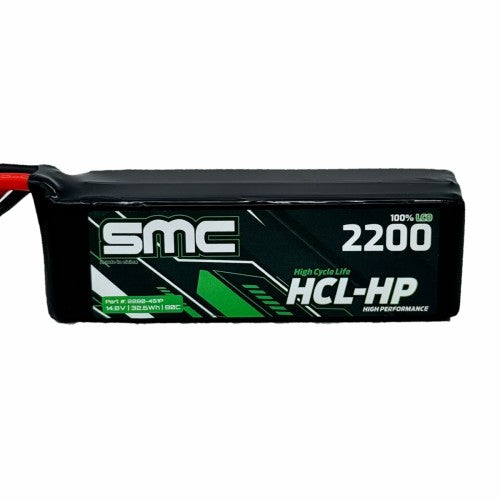

SMC 2280-4S1P HCL-HP 14.8V 2200mAh 80C Flight Pack — EC3

The SMC® 2280-4S1P HCL-HP 14.8V 2200mAh 80C Flight Pack is a lightweight 4S LiPo battery from SMC’s HCL-HP (High Current Lipo — High Performance) line, fitted with an EC3 connector and purpose-built for smaller electric RC aircraft and weight-sensitive builds. Built with 100% LCO cathodes for maximum cycle life and performance, the HCL-HP line delivers consistent power output and long-term cell durability. At 14.8V nominal (4S) and 2200mAh capacity, this is an ideal pack for smaller sport planes, park flyers, and aircraft where minimizing battery weight is critical. The 80C continuous discharge rating provides strong current delivery for the brushless motor setups found in smaller 4S aircraft, maintaining stable voltage and predictable throttle response throughout the discharge cycle.

Key Features

• Part Number: 2280-4S1P
• SMC HCL-HP 4S LiPo flight pack
• Voltage: 14.8V nominal (4S) — charge at 4.20V per cell (standard LiPo, not LiHV)
• Capacity: 2200mAh (±5%)
• Discharge rate: 80C continuous
• Connector: EC3
• Wire: 12AWG
• Dimensions: 29mm x 34mm x 109mm with G10 top and bottom protection plates
• Weight: 228g

Compatibility

• RC aircraft and vehicles compatible with 4S LiPo (14.8V) and EC3 connector — verify ESC voltage rating, battery compartment dimensions, and connector compatibility before use. Charge at 1C–5C with a LiPo-compatible balance charger at 4.20V per cell.

Benefits

• 100% LCO cathode construction for maximum cycle life and consistent performance
• 80C discharge rating provides strong current delivery for smaller 4S brushless motor setups
• Lightweight 2200mAh capacity minimizes weight penalty on smaller aircraft builds
• G10 top and bottom protection plates add cell protection without a full hard case
• EC3 connector for direct plug-and-play compatibility with EC3-equipped aircraft and ESCs
• SMC HCL-HP line — purpose-built for high-performance RC flight applications

Quick Take

Need a lightweight 4S flight pack with EC3 for a smaller RC aircraft? SMC 2280-4S1P delivers 14.8V, 2200mAh, and 80C performance in a 228g package with G10 protection — maximum cycle life, minimal weight.
