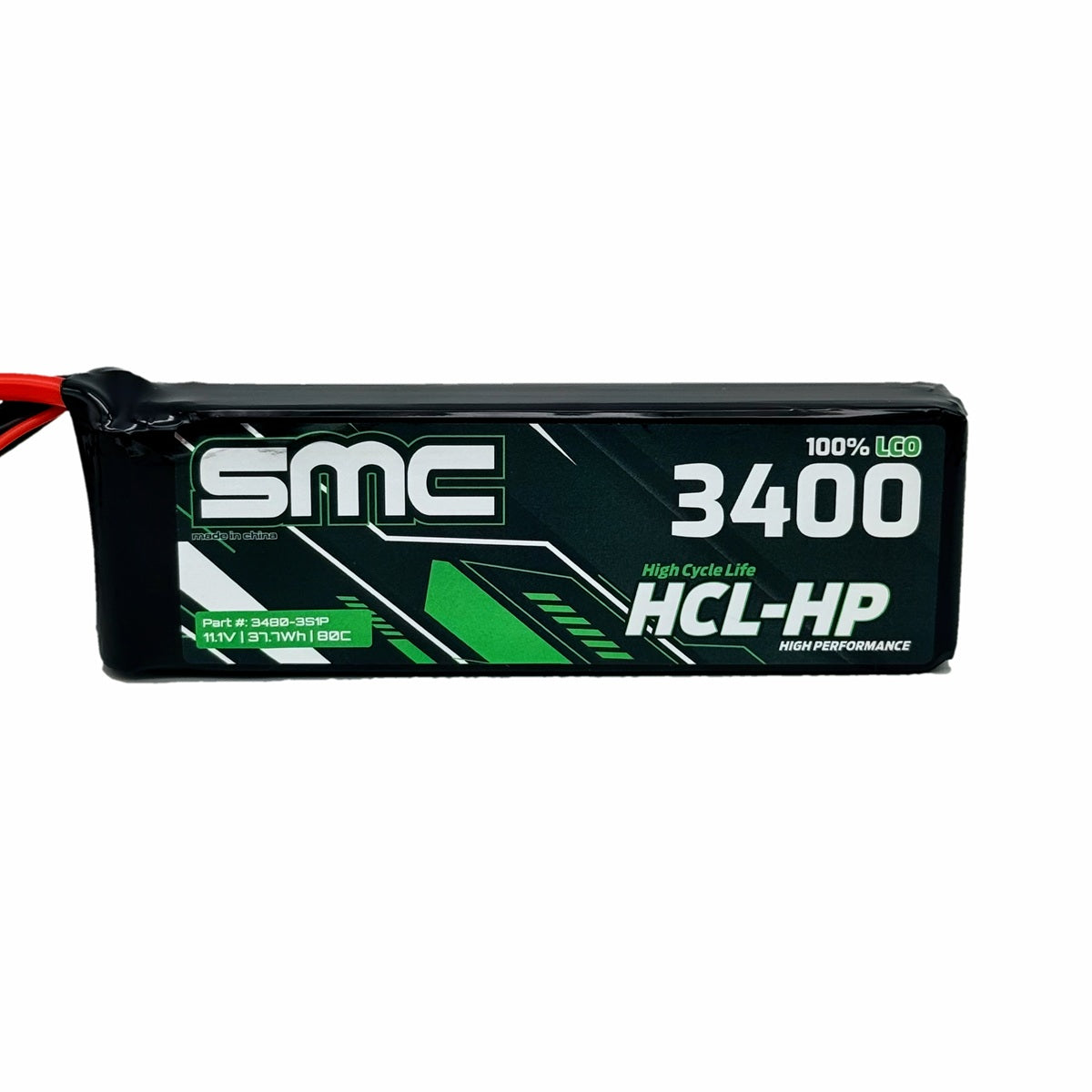

SMC Racing 3480-3S1PEC5 HCL-HP 11.1V 3400mAh 80C Flight Pack — EC5
Couldn't load pickup availability
If you Like it SHARE it
The SMC Racing 3480-3S1PEC5 HCL-HP is an 11.1V 3400mAh 80C 3S flight pack LiPo battery purpose-built for RC aircraft applications. Part of SMC's HCL-HP (High Current LiPo — High Performance) line, this pack is constructed with 100% LCO (Lithium Cobalt Oxide) cathodes for maximum cycle life and consistent power output. You will not find a pack with better performance for the same weight.
Note: these are standard LiPo cells — not LiHV. Must be charged at 4.20V per cell. G10 fiberglass top and bottom plates provide structural protection for the cell stack without the full weight penalty of a hardcase, keeping the pack light for flight applications.
Key Features
- 100% LCO cathode construction for maximum cycle life and sustained performance
- 80C continuous discharge for strong current delivery in RC aircraft applications
- G10 fiberglass top and bottom protection plates
- EC5 connector for direct compatibility with EC5-equipped aircraft and ESCs
- 12AWG wire for efficient power transfer
- Standard LiPo — charge at 4.20V per cell (not LiHV)
Specifications
| Part Number | 3480-3S1PEC5 | |
| Series | HCL-HP | |
| Voltage | 11.1V (3S) | |
| Capacity | 3400mAh (±5%) | |
| Discharge Rate | 80C | |
| Power Factor | 389 | |
| Connector | EC5 | |
| Wire Gauge | 12AWG | |
| Protection | G10 top & bottom plates | |
| Dimensions | 20 x 45 x 141mm | |
| Weight | 261g | |
| Charge Rate | 1C–5C (higher rates reduce returned mAh and cycle life) | |
