Quicrun Fusion 8IGHT 2300KV (2in1 FOC System, for Crawler

In stock
SKU: 30120404 Barcode: 088718513258
(0)
$ 169.99

Share to

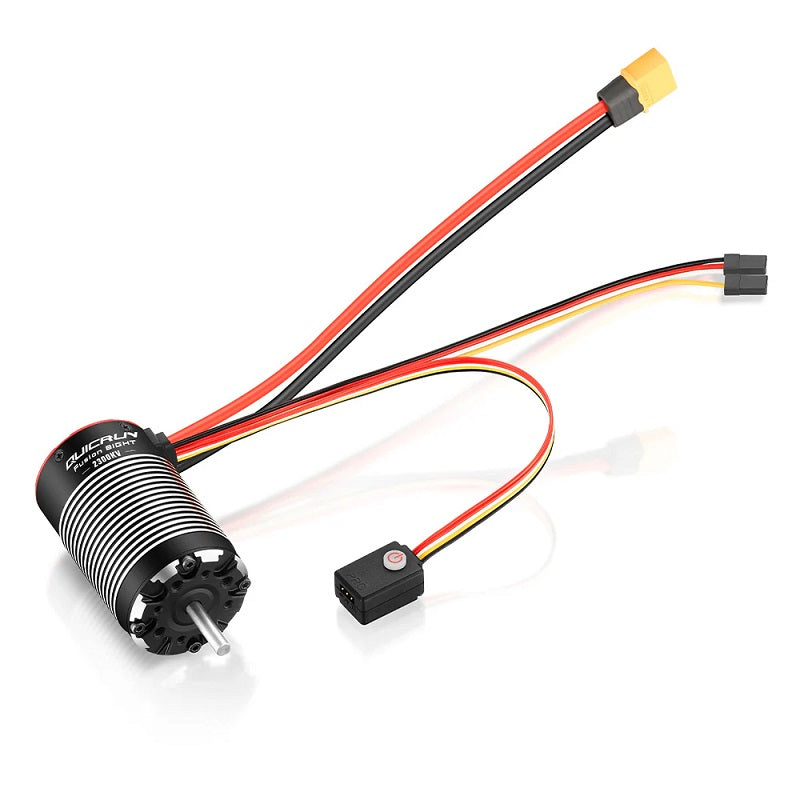

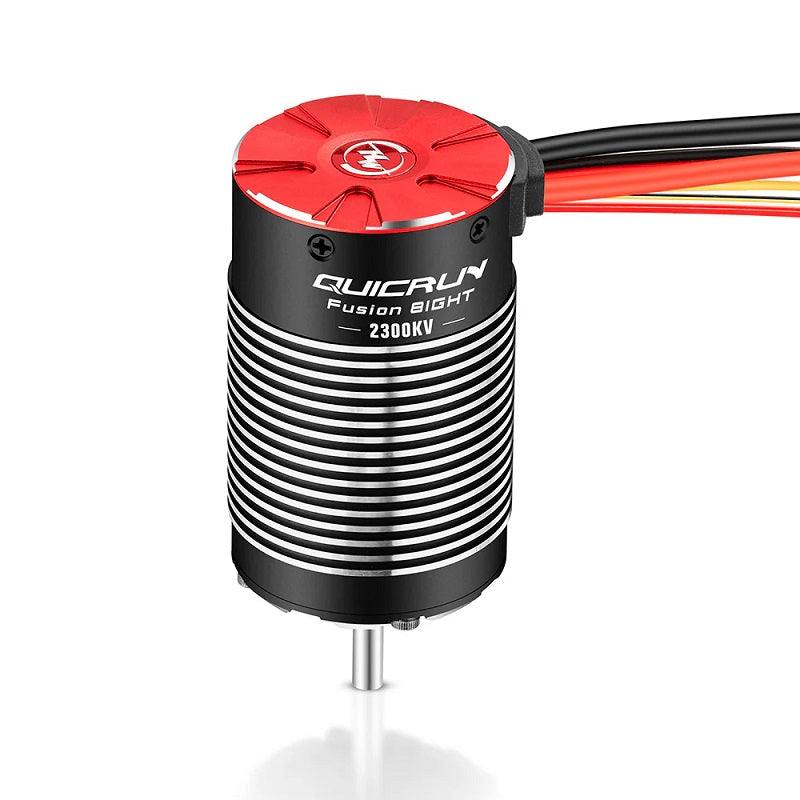

The Hobbywing QuicRun Fusion 8IGHT 2300KV (30120404) is a next-gen 2-in-1 motor and ESC system engineered specifically for 1/8 scale RC crawlers. Combining a powerful sensored brushless motor with a built-in FOC (Field-Oriented Control) ESC, this unit delivers incredibly smooth throttle response, precise low-speed control, and quiet, torque-rich performance—all in one clean, compact package.

Designed to simplify wiring while enhancing reliability and performance, the Fusion 8IGHT is ideal for serious rock crawlers seeking ultimate control on technical terrain.

Key Features:

  • Part Number: 30120404

  • Motor KV: 2300KV

  • Type: Sensored Brushless (2-in-1 motor + ESC)

  • Control Algorithm: FOC (Field-Oriented Control)

  • Application: 1/8 scale crawlers

  • Voltage Input: 3S–4S LiPo

  • BEC Output: 6V/7.4V @ 6A (adjustable)

  • Waterproof Rating: Fully waterproof and dustproof

  • Connectors: XT60 (battery), 4mm bullet (motor leads)

Benefits:

  • The integrated design of the ESC and motor simplifies car layout and wiring, making it more convenient.
  • FOC (Field Oriented Control) driving mode enhances the power system for rock crawlers, providing strong low-speed torque. This setup offers improved control and feel over standard brushless and even brushed setups.
  • High efficiency results in less heat, extending runtime, while the motor operates more quietly and smoothly.
  • IP67 protection grade ensures reliable performance in all conditions.
  • Intelligent torque output and speed closed-loop control allow for precise handling.
  • Active drag brake force adjustment offers superior holding power on inclines.
  • Equipped with a strong built-in switch mode BEC, delivering a continuous/peak current of up to 6A/13A with adjustable voltages (6V/7.4V/8.4V) to power high-torque and high-voltage servos.
  • Real-time drag brake force adjustment is possible via the transmitter's AUX channel.
  • Multiple protection functions: low battery voltage, overheat, throttle loss, and lock-up protections.
  • Compatible with LED and LCD Program Box Pro/G2 for easy ESC parameter adjustments.

Upgrade your crawler with the Hobbywing QuicRun Fusion 8IGHT 2300KV—power, precision, and simplicity in one revolutionary system.
