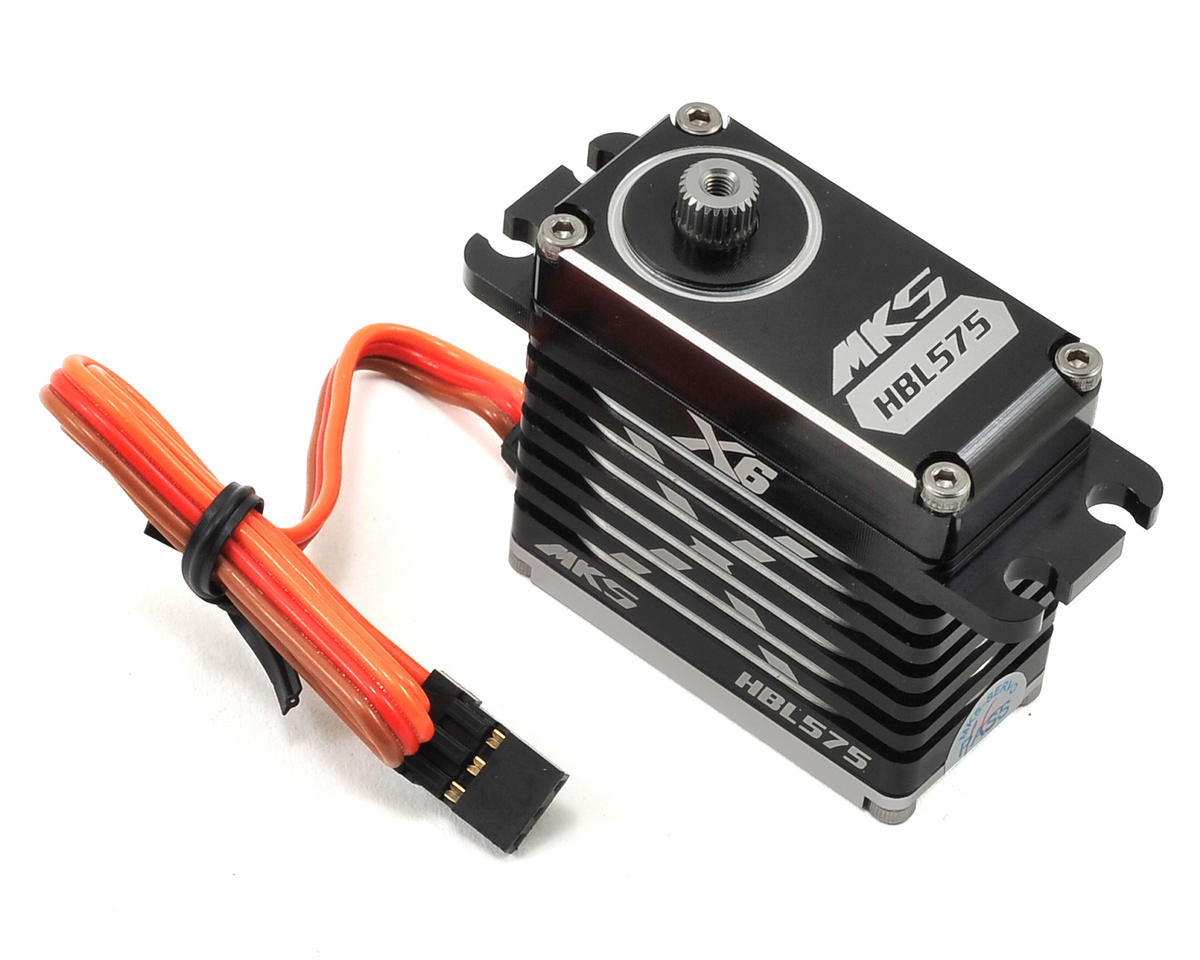

MKS Servos MKS-HBL575 X6 Brushless Titanium Gear High Speed HV Digital Servo
Regular price
$ 219.99
Couldn't load pickup availability
If you Like it SHARE it
MKS Servos MKS-HBL575 X6 Brushless Titanium Gear High Speed HV Digital Servo combines high speed, low power consumption and strong holding torque in a standard-size package. Its high-voltage circuitry and brushless motor suit compatible 1/10- and 1/8-scale applications, including buggies requiring fast response.
Key Features
- Japanese brushless motor for efficient operation
- Chrome-titanium alloy gears for precision and durability
- CNC-machined aluminum case for cooling
- High-voltage operation from 3.5V to 8.4V
- HD 4096 resolution
- Default dead band of 0.0008ms
- Dual ball bearings and superior holding torque
- Standard-size 40 x 20 x 38.5mm dimensions
Compatibility
- Compatible 1/10- and 1/8-scale applications, including buggies
- Check mounting clearance, servo horn fitment, receiver or controller signal settings and power supply before installation.
- Signal specification: 1520 microseconds / 333Hz
- Supports an unregulated 2S LiPo supply within the specified 3.5-8.4V operating range.
Specifications
| Store SKU | MKS-HBL575 |
| Model | X6 HBL575 |
| Servo Type | Standard-size high-speed digital, high voltage |
| Operating Voltage | 3.5-8.4V |
| Torque at 6.0V | 249.97 oz-in (18 kg-cm) |
| Torque at 7.4V | 305.5 oz-in (22 kg-cm) |
| Torque at 8.2V | 333.3 oz-in (24 kg-cm) |
| Speed at 6.0V | 0.082 sec |
| Speed at 7.4V | 0.066 sec |
| Speed at 8.2V | 0.060 sec |
| Dimensions | 40 x 20 x 38.5mm |
| Servo Weight | 71.4 g (approximately 2.52 oz) |
| Signal | 1520 microseconds / 333Hz |
| Default Dead Band | 0.0008ms |
| Resolution | 4096 |
| Bearings | 2 ball bearings |
| Motor | Japanese brushless motor |
| Gears | Chrome-titanium alloy |
| Case | CNC-machined aluminum |
