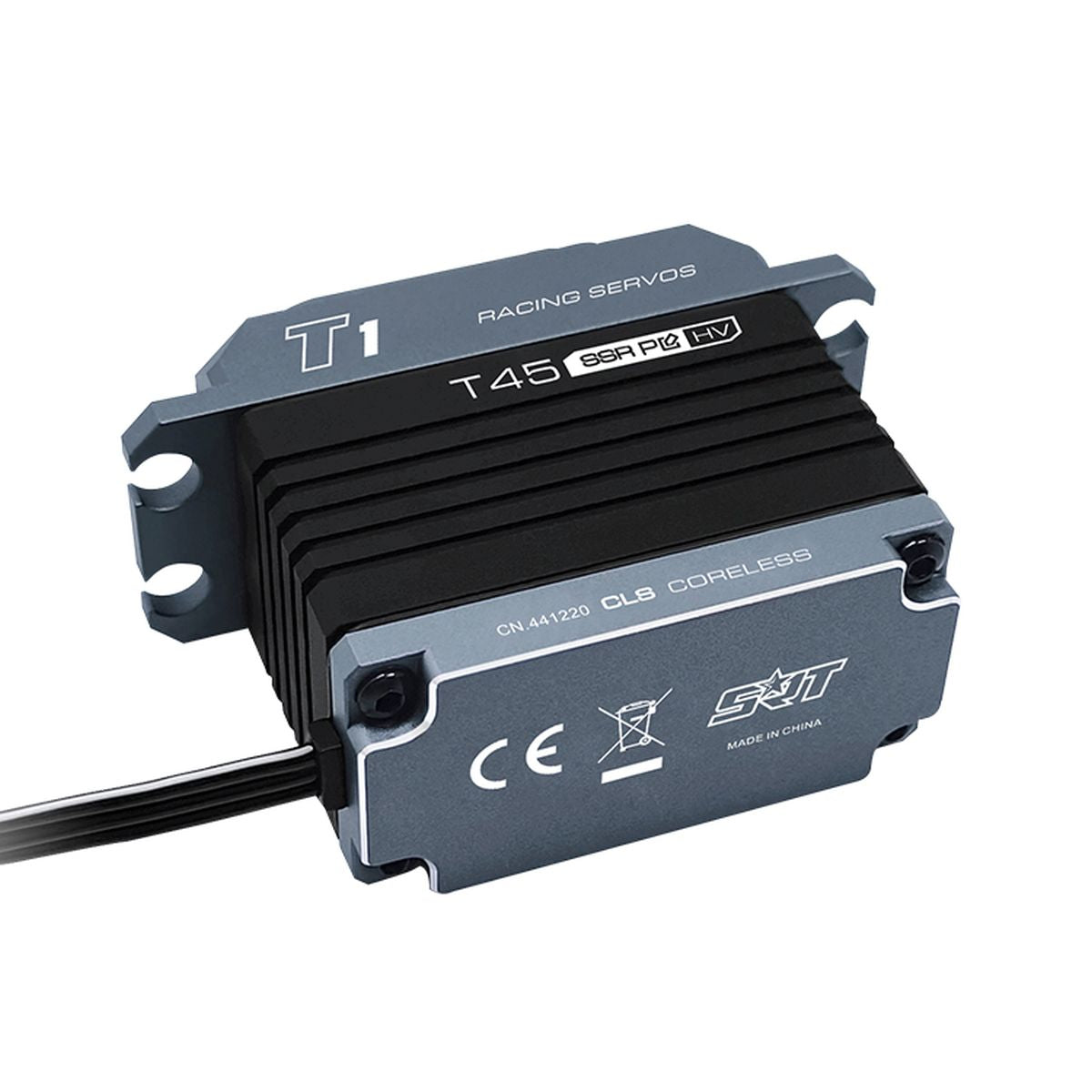

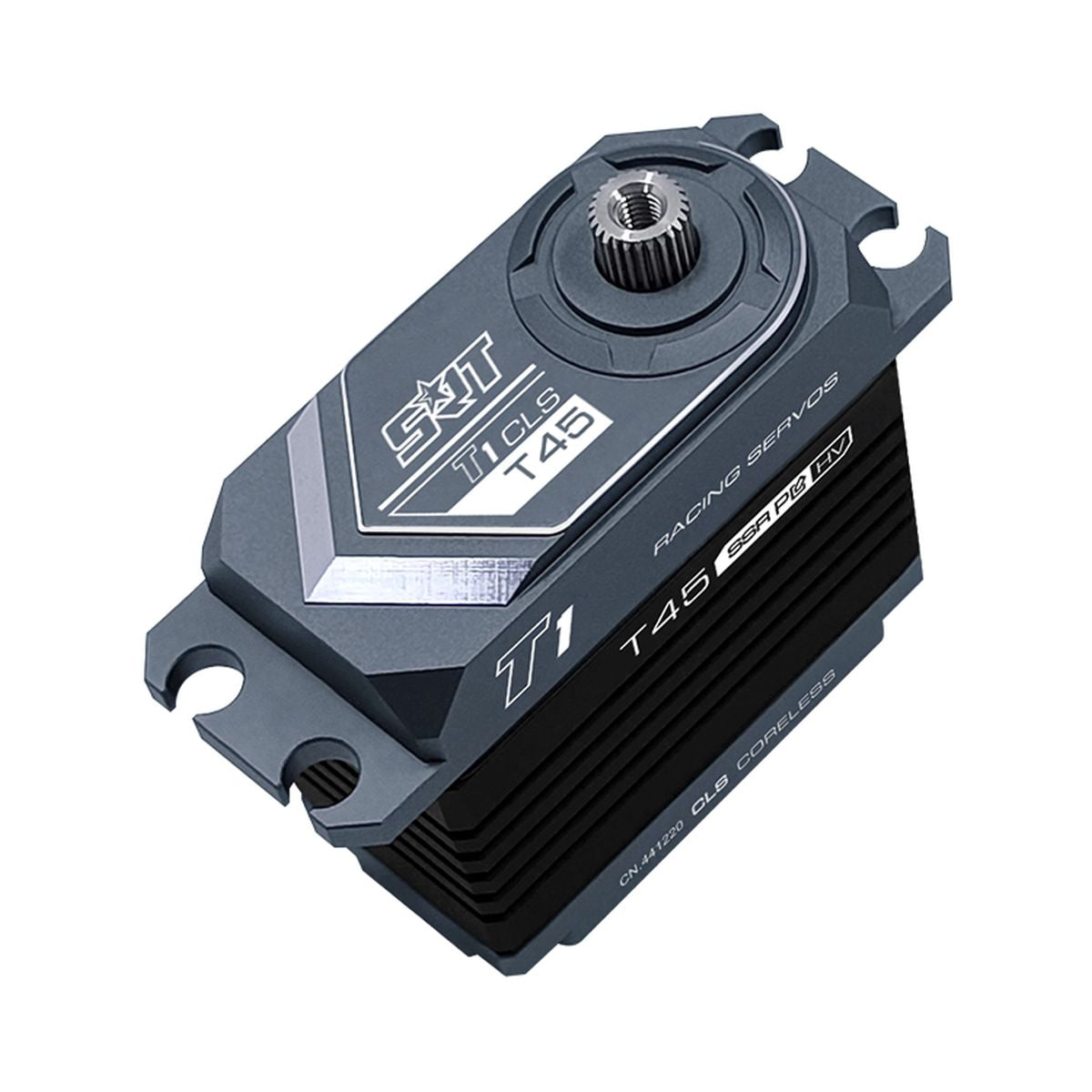

SRT SRTT45 T45 Standard HV Coreless Digital Servo

In stock
SKU: SRTT45
(0)
$ 77.99

If you Like it SHARE it

The SRT T45 standard-size HV coreless digital servo delivers 625.0 oz-in of torque and a 0.13-second speed rating at 8.4V. Use it for an RC installation that calls for a standard-size, high-voltage digital servo, with mounting and power requirements checked before installation.

Key Features

  • Standard-size digital servo
  • Coreless motor
  • High-voltage operation with performance rated at 8.4V
  • 625.0 oz-in torque at 8.4V
  • 0.13-second speed rating at 8.4V

Compatibility

  • RC applications requiring a standard-size HV digital servo; verify mounting dimensions, servo horn fit, and power-system voltage before use.

Specifications

SKU SRTT45
Model T45
Size Standard
Motor Coreless
Control Digital
Rated Performance Voltage 8.4V
Torque at 8.4V 625.0 oz-in
Speed at 8.4V 0.13 sec
Weight ~3 oz (estimated)



T45 Standard HV Coreless Digital Servo, .13sec / 625.0oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Coreless servo
  • SSR mode compatible
  • 25T output shaft
  • 2 usec Dead Band
  • 1-Year Limited Warranty
  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Steel & Aluminum
  • Control System: Pulse Width Control
  • Working Frequency: 1520Is / 330hz
  • Operating Voltage: dc6.0-8.4v
  • Operating Temperature Range: -10 to + 60 degree
  • Operating Speed (6.0v): 0.16 sec/60 degrees at no load
  • Operating Speed (7.4v): 0.14 sec/60 degrees at no load
  • Operating Speed (8.4v): 0.13 sec/60 degrees at no load
  • Stall Torque (6.0v): 30.0kg.cm (499.9 oz/in)
  • Stall Torque (7.4v): 40.0kg.cm (555.5 oz/in)
  • Stall Torque (8.4v): 45.0kg.cm (625.0 oz/in)
  • Potentiometer Drive: Direct Drive
  • Dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
  • Weight: 81.0g (2.86 oz)
  • Connector Wire Length: jr 300 mm
