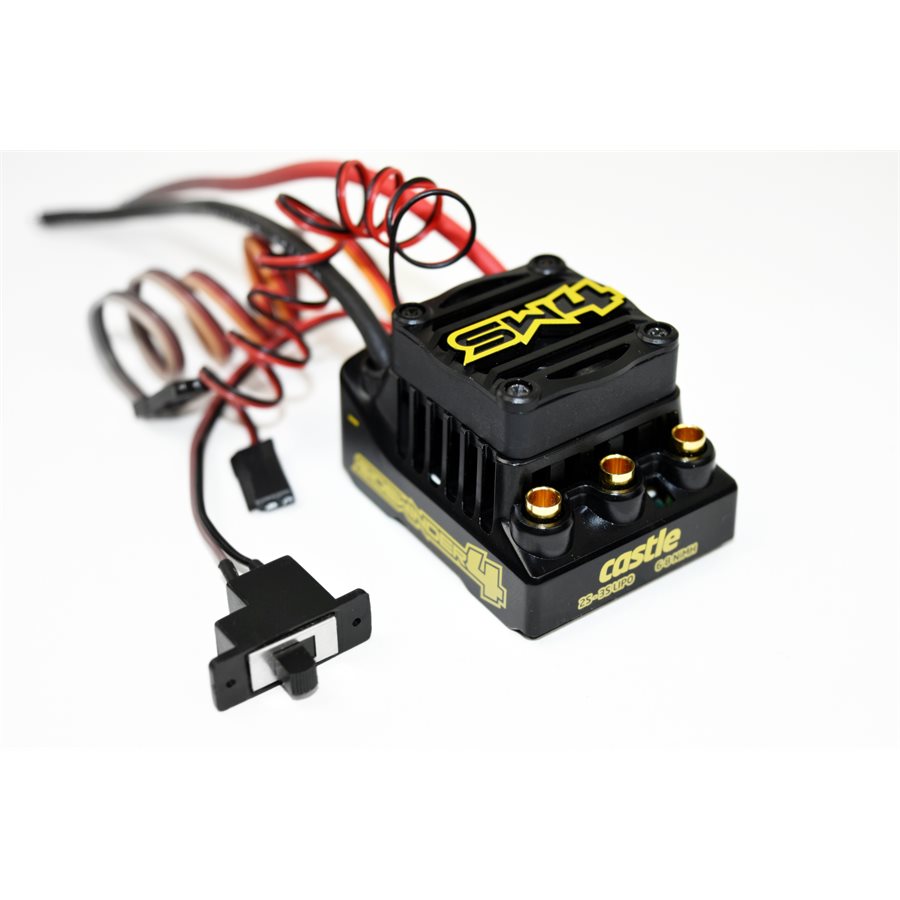

Castle Creations CSE010-0164-00 Sidewinder 4 Waterproof Sensorless ESC
Regular price
$ 79.95
Couldn't load pickup availability
If you Like it SHARE it
The Castle Creations CSE010-0164-00 Sidewinder 4 is a waterproof sensorless brushless ESC built for 1/10 scale RC vehicles running 2S–3S LiPo or 6–8 cell NiMH. Featuring Castle's Cryo-Drive software for cooler operation, a 30mm cooling fan, and a fully programmable feature set via Castle Link USB adapter, the Sidewinder 4 delivers versatile, high-performance power management in a sleek, modern case with improved ventilation.
Key Features
- Cryo-Drive software — runs cooler than comparable ESCs for longer, harder runs
- 30mm cooling fan included — 20% larger than previous generation
- Waterproof construction (not intended for full submersion)
- Fully programmable via Castle Link USB adapter (sold separately)
- Improved case ventilation for better thermal management
- Compatible with a wide variety of 1/10 scale applications
Compatibility
- 2S–3S LiPo battery packs
- 6–8 cell NiMH battery packs
- Most 1/10 scale brushless sensorless motors
Specifications
| Part Number | CSE010-0164-00 |
| Input Voltage | 2S–3S LiPo; 6–8 cell NiMH |
| BEC Output | 5.0V fixed, 2A |
| Cooling Fan | 30mm (included) |
| Motor Type | Sensorless Brushless |
| Motor Connectors | 4mm female bullet connectors |
| Dimensions | 52.92mm (L) x 38.05mm (W) x 32.56mm (H) |
| Weight | 2.26 oz (64g) ⚠️ store had 12.0 oz — corrected from spec sheet |
| Country of Origin | China |
