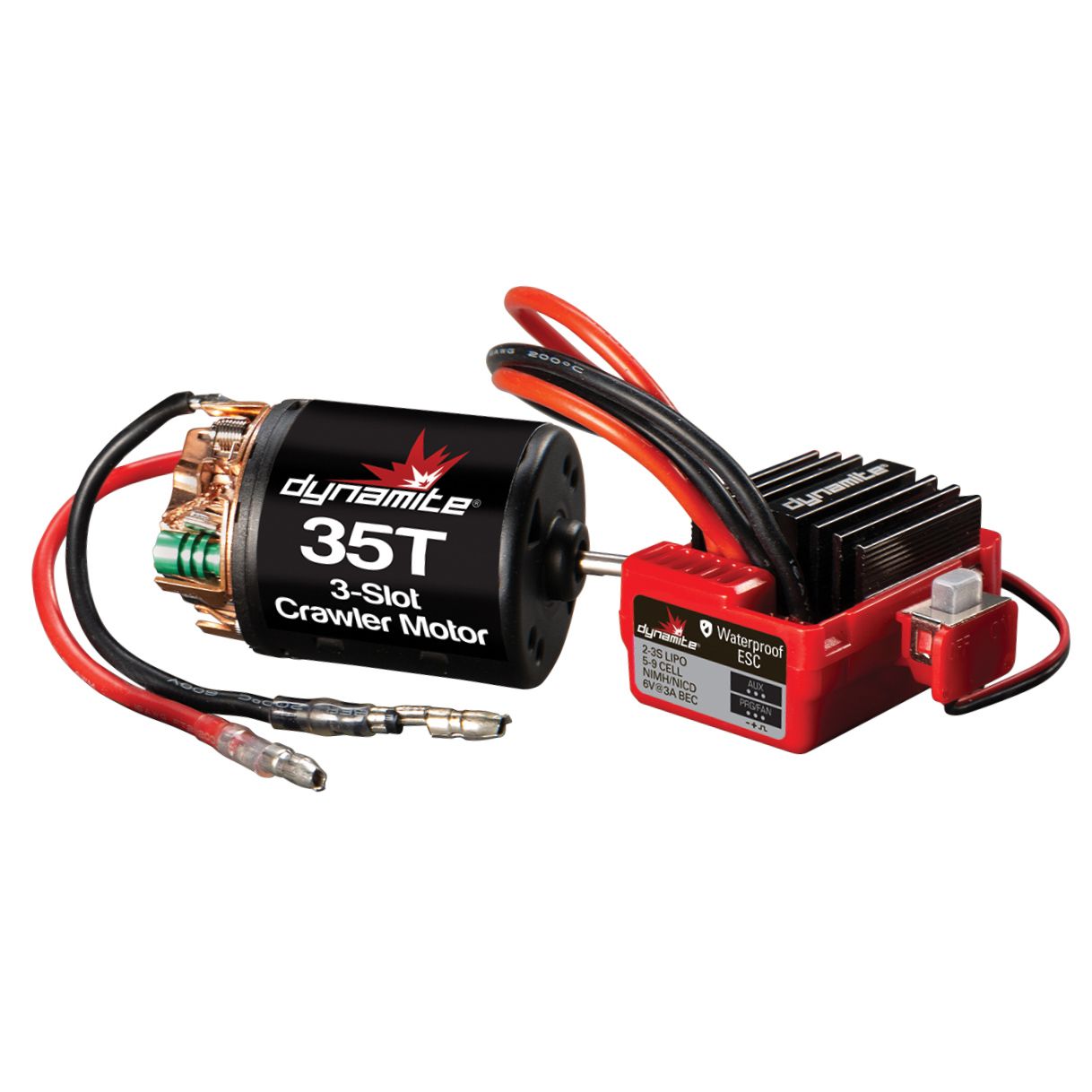

Brushed Crawler Motor/ESC Combo, 35T: 3.5mm Bullet, EC3

Overview

This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.

Component Specifications

Motor:

  • Motor dimensions:  36mm dia x 53mm L
  • Shaft dimensions:  1/8”/3.12mm x 12.5mm
  • Input voltage limit:  2S-3S LiPo/6-9cell NiMH
  • Bearings/Bushings:  Ball bearings

ESC:

  • Input Voltage:  2-3S LiPo, 6-9 Cells NiMH/NiCd
  • Size:  46.5x34x28.5mm
  • Weight:  68g
  • Motor Limit:  >12T 2S/ >18T 3S
  • On-Resistance FET:  .002
  • Continuous current:  40A
  • Rated/Peak Current:  180A
  • Braking Current:  90A
  • BEC Voltage:  6.0V 3.0A Peak
  • Connector:  IC3
  • PWM Frequency:  1KHz

Specifications

Adjustable Timing Yes
Battery Connector IC3
Bearings or Bushings Rubber sealed ball bearings
BEC Yes
BEC Continous Current 6V/3A
BEC Type Shared between receiver, auxillary light ioutput and cooling fan
BEC Voltage 6V
Brakes Electronic
Cells 2S - 3S LiPo, 6 - 9 cell NiMH
Connector Type 3.5mm Bullet, 3.5mm Tamiya style bullet, IC3
Forward Yes
Height ESC 1.1" (28.5mm)
Input Voltage 7.2 - 11.1V
Length ESC 1.8" (46.5mm)
Motor Connector 3.5mm Bullet
Motor Type Brushed, Brushed 3-slot rotor, open endbell for 1:10 scale rock crawlers
Overall Diameter 1.4" (36mm)
Overall Length 2.1" (53mm)
Reverse Yes
Shaft Diameter 1/8" (3.2mm)
Size Motor 2.1 x 1.4" (53 x 36mm)
Turns 35T
Type 1/10 scale crawler
Weight ESC 2.4oz (68g) with wires
Width ESC 1.3" (34mm)
