Traxxas 77096-4-BLUE X-Maxx 8S Monster Truck with Belted Tires, Blue

In stock
SKU: 77096-4-BLUE Barcode: 020334035431
(0)
$ 1,199.95

If you Like it SHARE it

Traxxas 77096-4-BLUE X-Maxx 8S Monster Truck with Belted Tires, Blue

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough™.

In The Box

  • X-Maxx 8S 4WD monster truck with belted Sledgehammer tires
  • TQi 2.4 GHz radio system

Needed to Complete

  • Two compatible 4S LiPo batteries for 8S operation
  • Compatible 4S-capable LiPo balance charger
  • Four AA alkaline batteries for the transmitter

Features

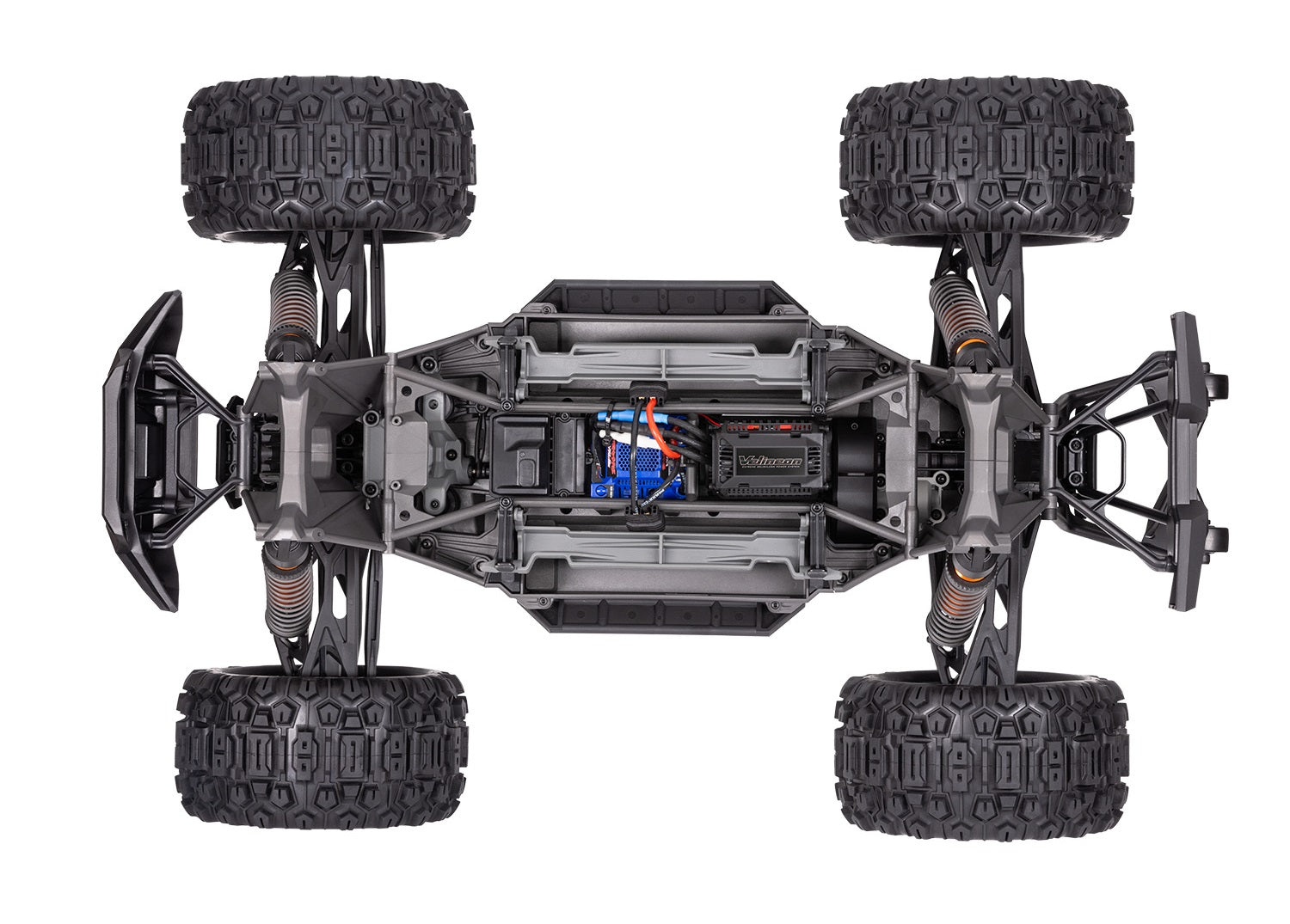

X-Maxx 8s Belted (77096-4) Chassis Top View
  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • “Big Block” brushless motor
    • 4-pole 1275 kV
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevent spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • Traxxas Link™ enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models. Just switch on and drive; “model selection” is not required.
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • BEC Voltage and Motor Temperature Sensor installed
  • Clipless Body Mount System
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • All-metal gears and CVDs
    • Overdrive gearing pre-installed
    • Torque-Biasing Center Drive™ absorbs shocks and distributes power
    • 24 mm splined wheel hexes
    • Wheel hexes retained with a clip
    • 17 mm hex on outside of wheel
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
    • Heavy-duty Cush Drive™ with steel spur gear
    • Fully machined aluminum stub axles
    • Splined aluminum center driveshaft
  • Heavy-Duty Fixed Motor Mount
    • Precision, preset gear mesh adjustments
    • No manual gear mesh adjustments are required
    • Motor retention separate from gear mesh
  • Heavy-Duty Modular Composite Chassis
    • Interlocking front and rear bulkheads
    • Motor mounts to rear bulkhead to eliminate gear crunching flex
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Clipless Battery Retention System
    • No body clips or hook and loop straps
    • Battery hold-downs pivot for easy access
    • Adjustable for battery size
    • More secure than conventional retention systems
    • Integrated into chassis top brace for improved battery tray and chassis stiffness
  • Bumpers
    • Front energy absorbing rubber impact bumper
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
  • Heavy-Duty Steering Bell Cranks and Servo Saver
    • High-output steering servo
    • Wired directly into the RX box, no external wires seen on chassis
    • New mounting system to fully support case
    • Double-shear, bearing supported servo horn
  • Suspension
    • Engineered to optimize suspension travel and steering angles
    • All critical suspension points have double shear strength
    • High strength steel suspension pins used throughout
    • Suspension pin retainers won’t come loose or “back-out”
    • 4 mm machined pivot balls
    • C-hub and steering block geometry maximizes steering angle
    • Adjustable roll center
    • Fixed, high-strength camber and toe links
    • Steel upper and lower tie bars
    • Full contact sealed bearings used in exposed locations
  • Large-Scale GTX Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • 5.2 mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Fixed shock locations
    • Lower spring perches bolted on
  • Wheels/Tires
    • Massive 8.4″ Sledgehammer® belted tires
      • Virtually eliminates ballooning at high speeds
      • Open tread block design
      • 2-piece foam insert
      • High-strength glue and bead design
    • Large, dual-diameter wheels

Specifications

Model 77096-4
Color Blue
Drive system Shaft-driven 4WD
Power system VXL-8s ESC and Velineon 1200XL brushless motor
Motor rating 4-pole, 1275 kV
Radio TQi 2.4 GHz with Traxxas Stability Management
Tires 8.4-inch belted Sledgehammer
Length 30.67 in (779 mm)
Width 21.3 in (540 mm)
Height 13.99 in (355 mm)
Wheelbase 18.92 in (480 mm)
Ground clearance 4.2 in (107 mm)
Vehicle weight 19.1 lb (8.66 kg)
Battery compartment 197 x 52 x 44 mm
Speed 50+ mph with two 4S LiPo batteries and optional speed gearing
Recommended age 14 years and up; adult supervision required under 18
Experience level Experienced users with advanced skills and expert driving ability

Not a toy. Read and follow all manufacturer instructions and LiPo safety precautions. Operate outdoors with adequate space.
