Kyosho KYO34425T1C 1/10 Fazer Mk2 FZ02 Nissan Skyline 2000GT-R KPGC10 Tuned Version Silver Readyset

Kyosho KYO34425T1C 1/10 Fazer Mk2 FZ02 Nissan Skyline 2000GT-R KPGC10 Tuned Version Silver Readyset pairs the classic Hakosuka GT-R silhouette with a factory-assembled, shaft-driven 4WD touring chassis.

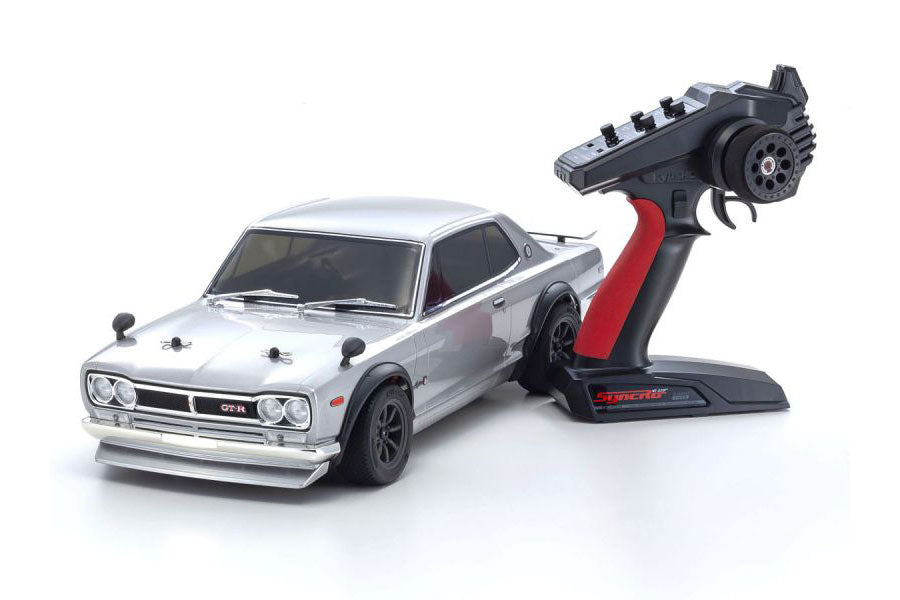

In The Box

• Completed chassis with installed R/C radio equipment
• Factory-assembled body with Silver color scheme
• Syncro KT-231P+ transmitter
• Hexagonal wrench and spanner
• Setting change parts

Needed to Complete

• Four AA batteries for the transmitter
• Chassis battery; manufacturer recommends a 7.2V NiMH battery
• Compatible charger for the chassis battery
• Tools as required for setup and maintenance

The chassis battery, charger, and transmitter batteries are not included.

Fazer Mk2 Touring Chassis

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source.

Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0 mm, +5 mm) provide compatibility with 190 mm and 200 mm width body styles and allow the wheelbase to be adjusted to 270 mm by replacing some parts, sold separately, for compatibility with other 1/10-scale body styles in addition to the included body. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

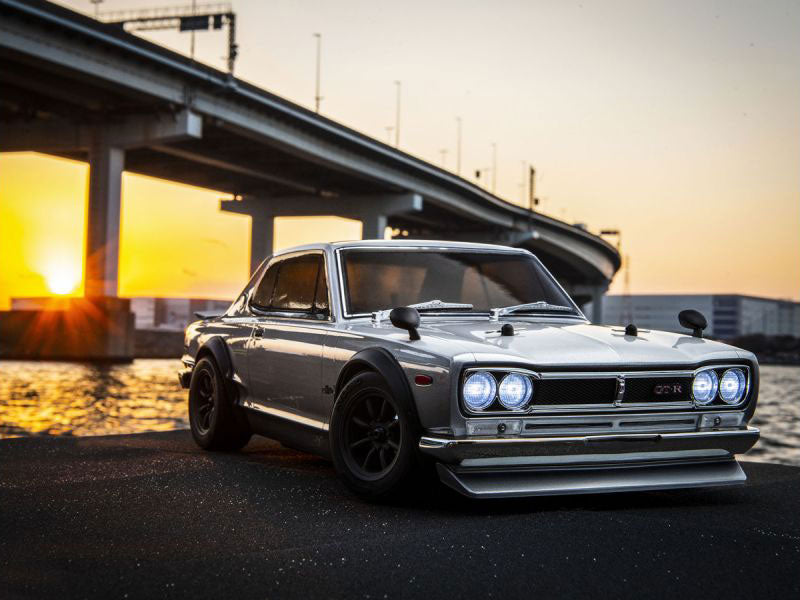

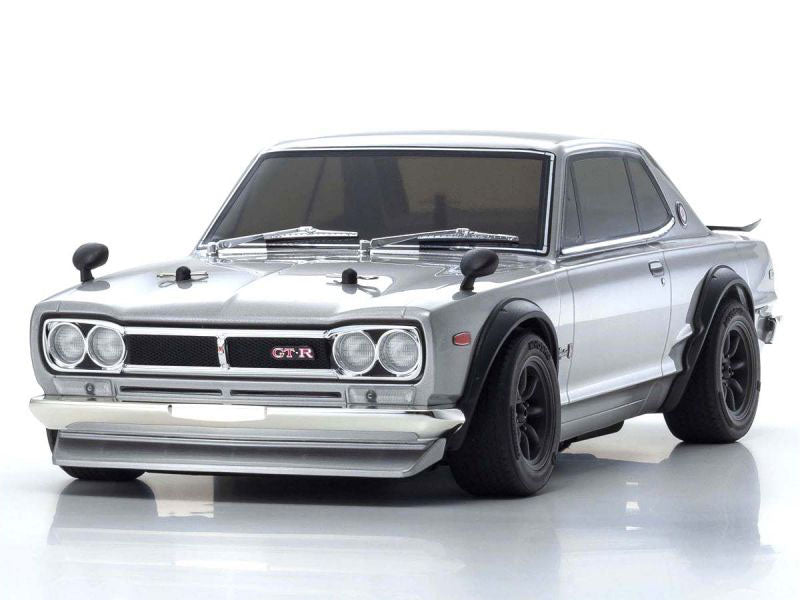

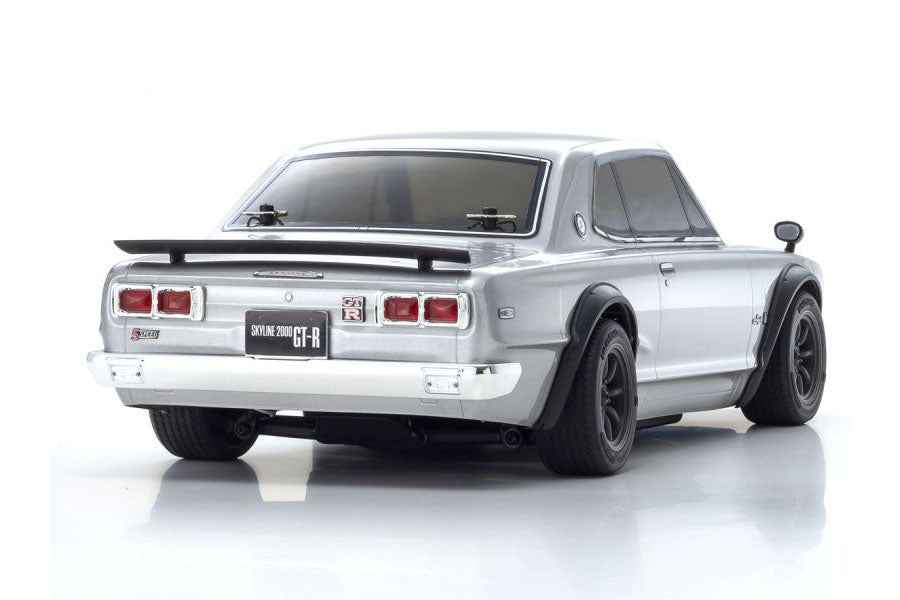

Ultra Scale Skyline Body

The Ultra Scale Body reproduces the fine details of the Nissan Skyline 2000GT-R KPGC10 Tuned Version in Silver. Vintage touring car tires and matching vintage-style wheels complement the Hakosuka GT-R appearance. Front and rear light buckets accept the separately sold 97054 LED light unit.

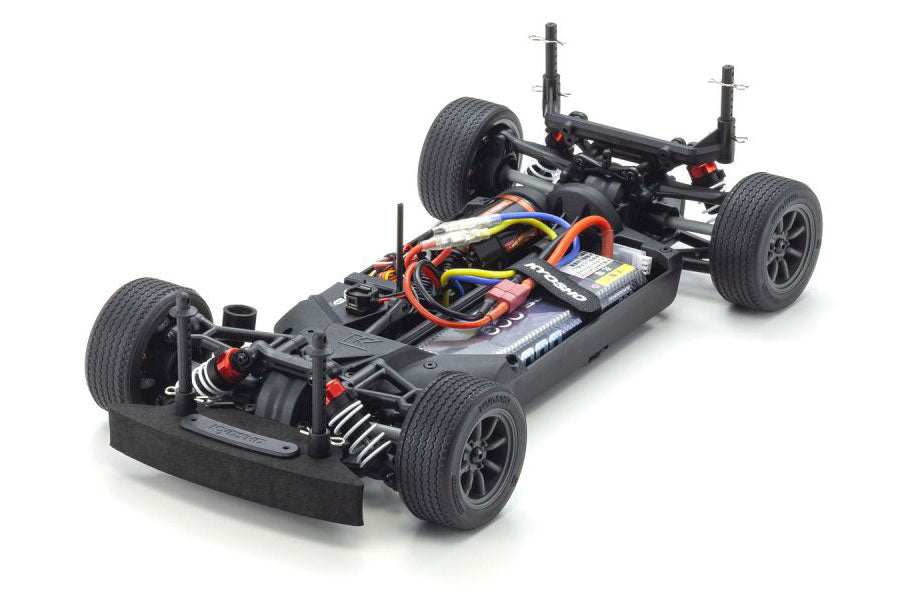

Chassis Design and Maintenance

The simple, functional design achieves a low center of gravity. An integrated gearbox optimizes torsional rigidity of the main chassis, while nylon construction reduces weight and improves impact resistance. Key components are reinforced without an upper deck.

A reduced number and variety of screws and parts simplifies maintenance, with frequently used screws consolidated to the same size. Most screws can be removed with a 2.0 mm hex wrench for easy disassembly. Front suspension geometry optimizes bump steer and scrub radius, while ball-connected steering knuckles provide reliable control movement. Interchangeable front and rear left-right hub carriers improve spare-parts utilization and maintenance efficiency.

Two offset brake-disc wheel hubs with dummy calipers provide compatibility with 190 mm and 200 mm body widths. Oil shocks are standard equipment; changing damper-end length adjusts vehicle height. Standard spur and pinion gears are 68T and 32T, with nine pinion settings from 29T through 37T available for gearing changes. The fixed gear-mesh motor mount has dedicated holes for each supported pinion.

Key Features

• Factory-assembled Readyset with finished body and transmitter
• Shaft-driven full-time 4WD FZ02 touring chassis
• Vintage touring car tires and vintage-style wheels
• Full ball bearings throughout the drive system reduce drive loss
• KS202W waterproof steering servo
• Sealed differentials and transmission for reliable performance on dusty parking-lot surfaces
• Plated dummy brake discs and painted brake calipers for scale detail
• Hex-socket button screws simplify maintenance
• Fixed gear-mesh motor mount supports 29T through 37T pinions
• Optional tuning parts available separately

Compatibility

• Optional 97054 LED light unit fits the front and rear light buckets; sold separately.
• Standard wheelbase is 260 mm; changing to 270 mm requires separately sold parts.
